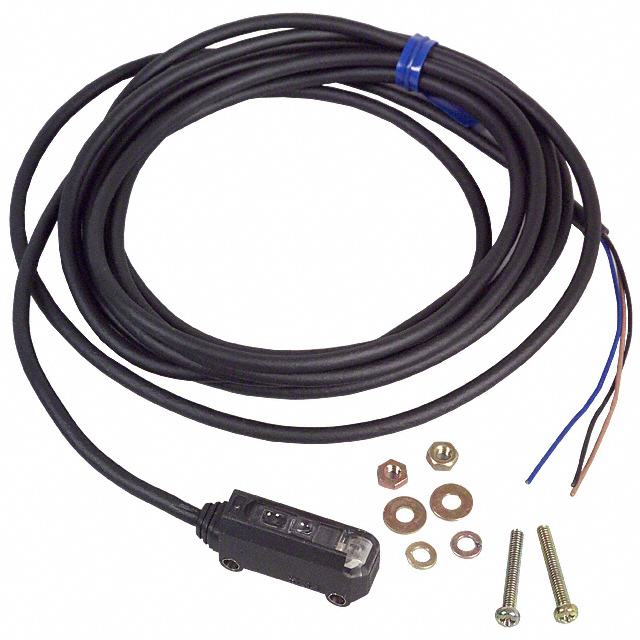

E3T-SL11
ActiveOmron Automation and Safety
SENSOR REFLECTIVE 15MM NPN LT ON
E3T-SL11
ActiveOmron Automation and Safety
SENSOR REFLECTIVE 15MM NPN LT ON
Description
General part information
E3T-SL11
Reflective, Convergent Optical Sensor 0.197" ~ 0.591" (5mm ~ 15mm) ADJ NPN - Open Collector/Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | E3T-SL11 |
|---|---|
| Connection Method | Wire |
| Ingress Protection | IEC IP67, IEC, IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 650 nm |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | NPN - Open Collector, Light-ON |
| Response Time | 1 ms |
| Sensing Distance Maximum | 0.591 " |
| Sensing Distance Minimum | 0.197 " |
| Sensing Method | Convergent, Reflective |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
