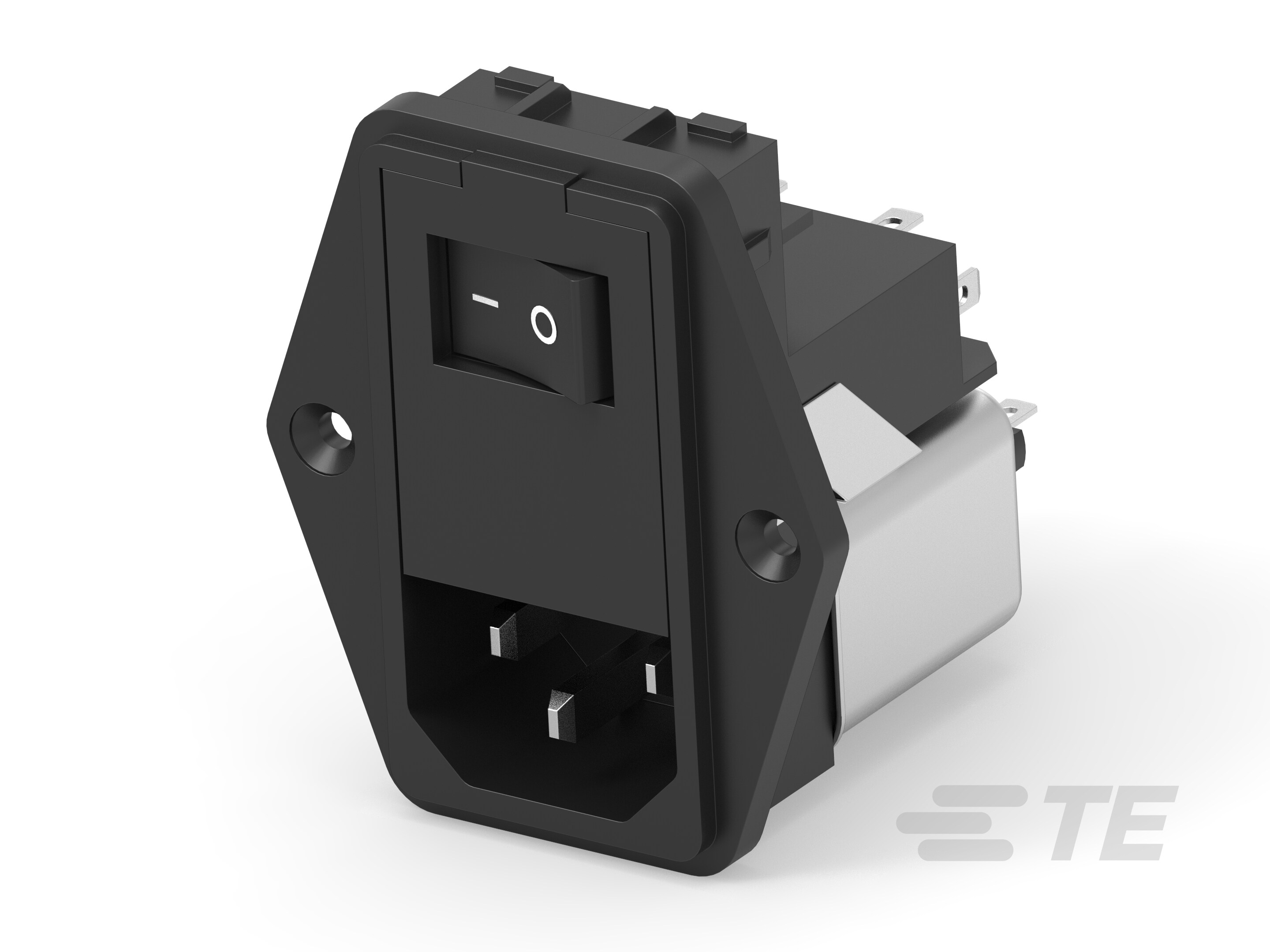

Specification	FN388-2-21

Accomodates a Fuse	Yes (Fuse Not Included)
Approval Agency	VDE, CSA, UL
Connector Style	IEC 320-C14
Connector Type	Male Blades - Module, Receptacle
Current Rating - Filter	2 A
Features	Front or Rear Side Mount
Filter Application	Commercial
Filter Subtype	EMI, RFI
Filter Type	Filtered
Fuse Holder, Drawer	Twin Fused, Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Flange
Number of Positions	3
Panel Cutout Description	Variable Size
Panel Thickness (Max)	0.126 in
Panel Thickness (Min)	0.031 in
Switch Features	Switch On-Off
Termination	Solder Eyelet

Schaffner FN380 Series

AC Power Entry Modules 6A MED SNAP IN-2FUSE POWER ENTRY MODULES

...

Part	Connector Style	Ingress Protection	Filter Type	Filter Subtype	Filter Application	Panel Thickness (Max)	Panel Thickness (Min)	Panel Cutout Description	Approval Agency	Switch Features	Connector Type	Mounting Type	Current Rating - Filter	Fuse Holder, Drawer	Material Flammability Rating	Accomodates a Fuse	Termination	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Frequency - Operating (Min)	Frequency - Operating	Frequency - Operating (Max)	Voltage - Rated AC (Phase to Ground/Neutral)	Termination Style	Voltage - Rated AC (Phase to Phase)	Current	Configuration	Applications	Features
TE Connectivity AMP Connectors FN380-2-22	IEC 320-C14	IP40	Filtered	EMI RFI	Commercial	0.126 in	0.031 in	Variable Size	CSA UL VDE	Switch On-Off	Male Blades - Module Receptacle	Panel Mount Snap-In	2 A	Fuse Holder	UL94 V-2	Yes (Fuse Not Included)	Solder Eyelet	3
TE Connectivity AMP Connectors FN3840-25-33-C35-R65			Three Phase	Delta					CE ENEC UR			Chassis Mount							100 °C	-40 °C	50 Hz	50Hz 60Hz	60 Hz	305 V	Terminal Block	530 V	25 A	Single Stage	Regenerative Motor Drive
TE Connectivity AMP Connectors FN382-2-22	IEC 320-C14	IP40	Filtered	EMI RFI	Commercial	0.126 in	0.031 in	Variable Size	CSA UL VDE	Switch On-Off	Male Blades - Module Receptacle	Panel Mount Snap-In	2 A	Fuse Holder Twin Fused	UL94 V-2	Yes (Fuse Not Included)	Solder Eyelet	3
TE Connectivity AMP Connectors FN382-2-21	IEC 320-C14	IP40	Filtered	EMI RFI	Commercial	0.126 in	0.031 in	Variable Size	CSA UL VDE	Switch On-Off	Male Blades - Module Receptacle	Panel Mount Snap-In	2 A	Fuse Holder Twin Fused	UL94 V-2	Yes (Fuse Not Included)	Solder Eyelet	3
TE Connectivity AMP Connectors FN389B-4-22	IEC 320-C14	IP40	Filtered	EMI RFI	Commercial Medical	0.126 in	0.031 in	Variable Size	CSA UL VDE	Switch On-Off	Male Blades - Module Receptacle	Flange Panel Mount	4 A	Fuse Holder Twin Fused	UL94 V-2	Yes (Fuse Not Included)	Solder Eyelet	3												Bleed Resistor Front or Rear Side Mount
TE Connectivity AMP Connectors FN389-6-21	IEC 320-C14	IP40	Filtered	EMI RFI	Commercial	0.126 in	0.031 in	Variable Size	CSA UL VDE	Switch On-Off	Male Blades - Module Receptacle	Flange Panel Mount	6 A	Fuse Holder Twin Fused	UL94 V-2	Yes (Fuse Not Included)	Solder Eyelet	3												Front or Rear Side Mount
TE Connectivity AMP Connectors FN389B-6-21	IEC 320-C14	IP40	Filtered	EMI RFI	Commercial Medical	0.126 in	0.031 in	Variable Size	CSA UL VDE	Switch On-Off	Male Blades - Module Receptacle	Flange Panel Mount	6 A	Fuse Holder Twin Fused	UL94 V-2	Yes (Fuse Not Included)	Solder Eyelet	3												Bleed Resistor Front or Rear Side Mount
TE Connectivity AMP Connectors FN389B-2-22	IEC 320-C14	IP40	Filtered	EMI RFI	Commercial Medical	0.126 in	0.031 in	Variable Size	CSA UL VDE	Switch On-Off	Male Blades - Module Receptacle	Flange Panel Mount	2 A	Fuse Holder Twin Fused	UL94 V-2	Yes (Fuse Not Included)	Solder Eyelet	3												Bleed Resistor Front or Rear Side Mount
TE Connectivity AMP Connectors FN388B-2-21	IEC 320-C14	IP40	Filtered	EMI RFI	Commercial Medical	0.126 in	0.031 in	Variable Size	CSA UL VDE	Switch On-Off	Male Blades - Module Receptacle	Flange Panel Mount	2 A	Fuse Holder Twin Fused	UL94 V-2	Yes (Fuse Not Included)	Solder Eyelet	3												Bleed Resistor Front or Rear Side Mount
TE Connectivity AMP Connectors FN388-4-22	IEC 320-C14	IP40	Filtered	EMI RFI	Commercial	0.126 in	0.031 in	Variable Size	CSA UL VDE	Switch On-Off	Male Blades - Module Receptacle	Flange Panel Mount	4 A	Fuse Holder Twin Fused	UL94 V-2	Yes (Fuse Not Included)	Solder Eyelet	3												Front or Rear Side Mount
