Description
General part information

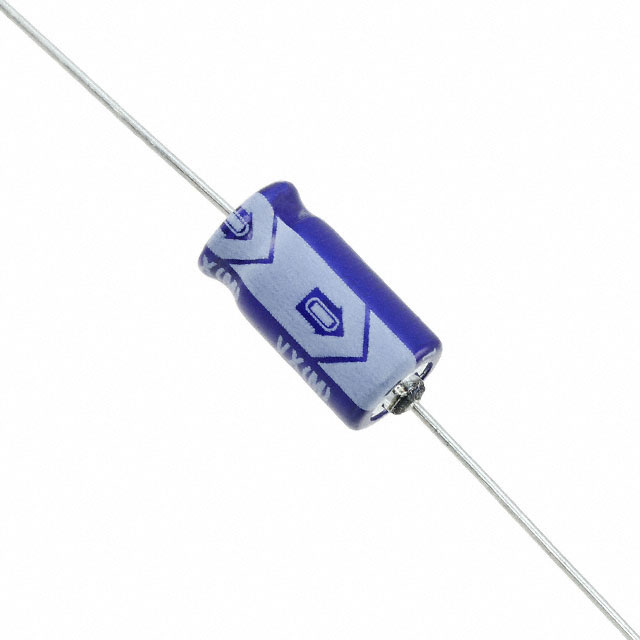

TVX1E101MAD1LS
100 µF 25 V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | TVX1E101MAD1LS |
|---|---|
| Applications | General Purpose |
| Capacitance | 100 µF |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 255 mA, 170 mA |
| Size / Dimension Diameter | 0.248 in |
| Size / Dimension Length | 0.63 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
