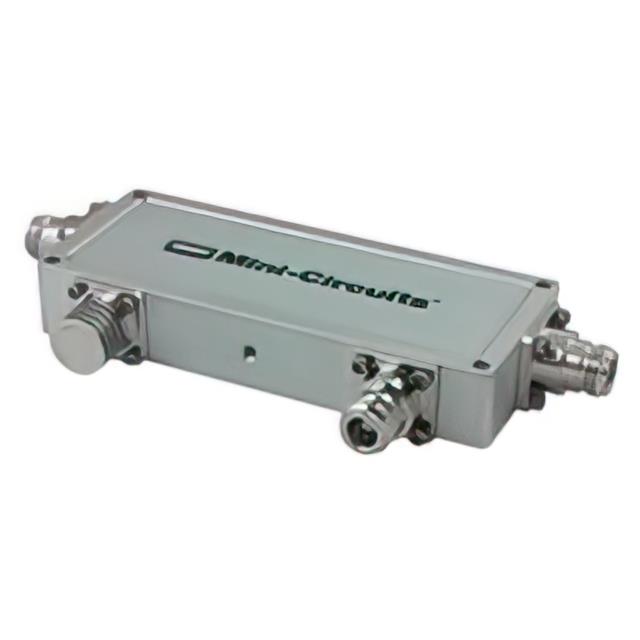

ZGDC10-372HP+
ActiveMini-Circuits
10 DB DIR COUP, 380 - 3700 MHZ
ZGDC10-372HP+
ActiveMini-Circuits
10 DB DIR COUP, 380 - 3700 MHZ
Description
General part information
ZGDC10-372HP+
RF Directional Coupler Cellular, GSM, PCN, WiMAX 380MHz ~ 3.7GHz 11.4 ± 1.4dB 250W Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | ZGDC10-372HP+ |
|---|---|
| Applications | GSM, PCN, WiMax, Cellular |
| Coupler Type | Standard |
| Coupling Factor | 11.4 dB |
| Coupling Factor Tolerance | 1.4 dB |
| Frequency (Max) | 3.7 GHz |
| Frequency (Min) | 380 MHz |
| Insertion Loss | 0.17 dB |
| Package / Case | Module, SMA Connectors |
| Power - Max | 250 VA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
