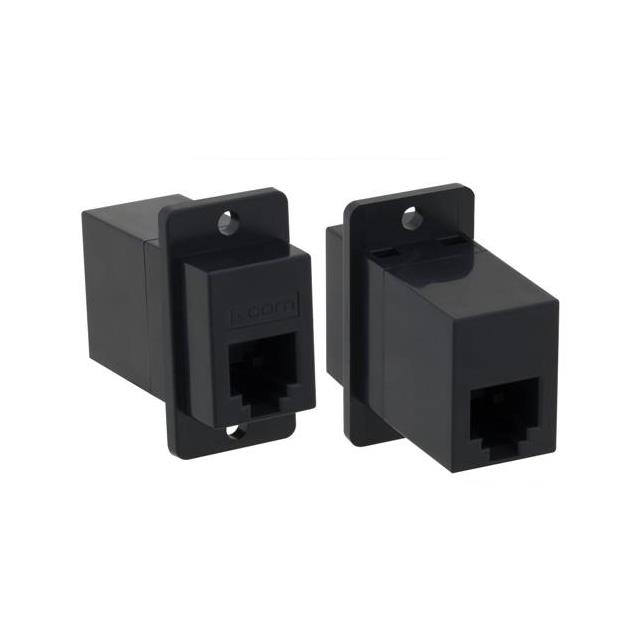

ECF5044S-BK
ActivePasternack
IN-LINE ADAPTER, CAT3, 6P4C, BLACK, ADAPTOR, IN-LINE, RJ11, RJ11
ECF5044S-BK
ActivePasternack
IN-LINE ADAPTER, CAT3, 6P4C, BLACK, ADAPTOR, IN-LINE, RJ11, RJ11
Description
General part information
ECF5044S-BK
Modular Coupler Connector Jack, 6p4c (RJ11, RJ14) To Jack, 6p4c (RJ11, RJ14) Cat3 Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | ECF5044S-BK |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Phosphor Bronze |
| Convert From (Adapter End) | Jack, 6p4c (RJ11, RJ14) |
| Convert To (Adapter End) | Jack, 6p4c (RJ11, RJ14) |
| Housing Material | ABS, Acrylonitrile Butadiene Styrene |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Ratings | Cat3 |
| Shielding | Unshielded |
| Type | Coupler |
