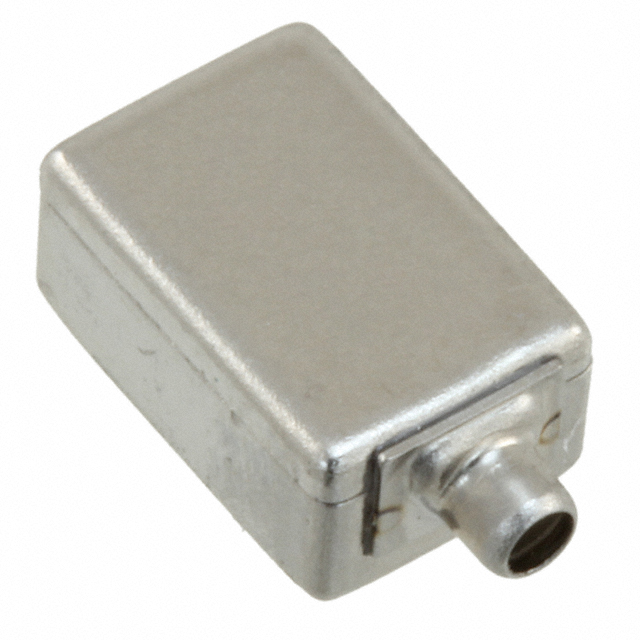

ED-21950-000
ObsoleteKnowles Syfer
SPEAKER 455OHM TOP PORT 106DB
ED-21950-000
ObsoleteKnowles Syfer
SPEAKER 455OHM TOP PORT 106DB
Description
General part information
ED-21950-000
455 Ohms Receiver, Balanced Armature Speaker 200 Hz ~ 5 kHz Top Rectangular
Technical Specifications
Parameters and characteristics for this part
| Specification | ED-21950-000 |
|---|---|
| Efficiency - dBA | 106 dBA |
| Efficiency - Type | Sensitivity |
| Frequency Range (Max) | 5 kHz |
| Frequency Range (Min) | 200 Hz |
| Height - Seated (Max) | 0.248 in |
| Impedance | 455 Ohms |
| Port Location | Top |
| Shape | Rectangular |
| Size / Dimension Length | 0.248 in |
| Size / Dimension Width | 0.169 in |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | Balanced Armature, Receiver |
