095-825-120-036
ActiveMcGill Microwave Systems
CABLE ASSEMBLY 0.086" CONFORMABLE CABLE 0.914M 2.92MM TO 2.92MM PL-PL BAG
095-825-120-036
ActiveMcGill Microwave Systems
CABLE ASSEMBLY 0.086" CONFORMABLE CABLE 0.914M 2.92MM TO 2.92MM PL-PL BAG
Description
General part information
095-825-120-036

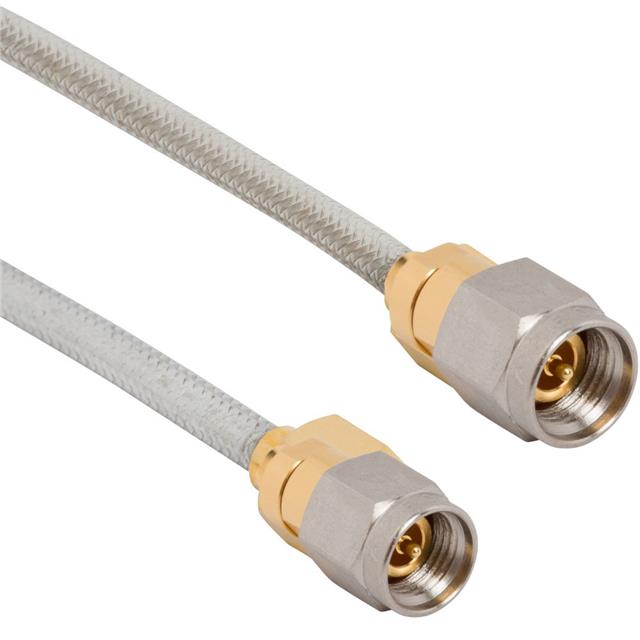

Cable Assembly Coaxial 2.92mm to 2.92mm 0.086" Flexible Cable 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 095-825-120-036 |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 2.92 mm |
| 1st Contact Gender | Male |
| 2nd Connector | Plug |
| 2nd Connector Diameter | 2.92 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Diameter | 0.086 " |
| Cable Outer Diameter | 0.086 " |
| Cable Type | Flexible Cable |
| Cable Type Size | 0.086 |
| Color | Silver |
| Frequency - Max | 40 Gbps |
| Length | 36 in |
| Overall Impedance | 50 Ohms |
| Style | 2.92mm to 2.92mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
