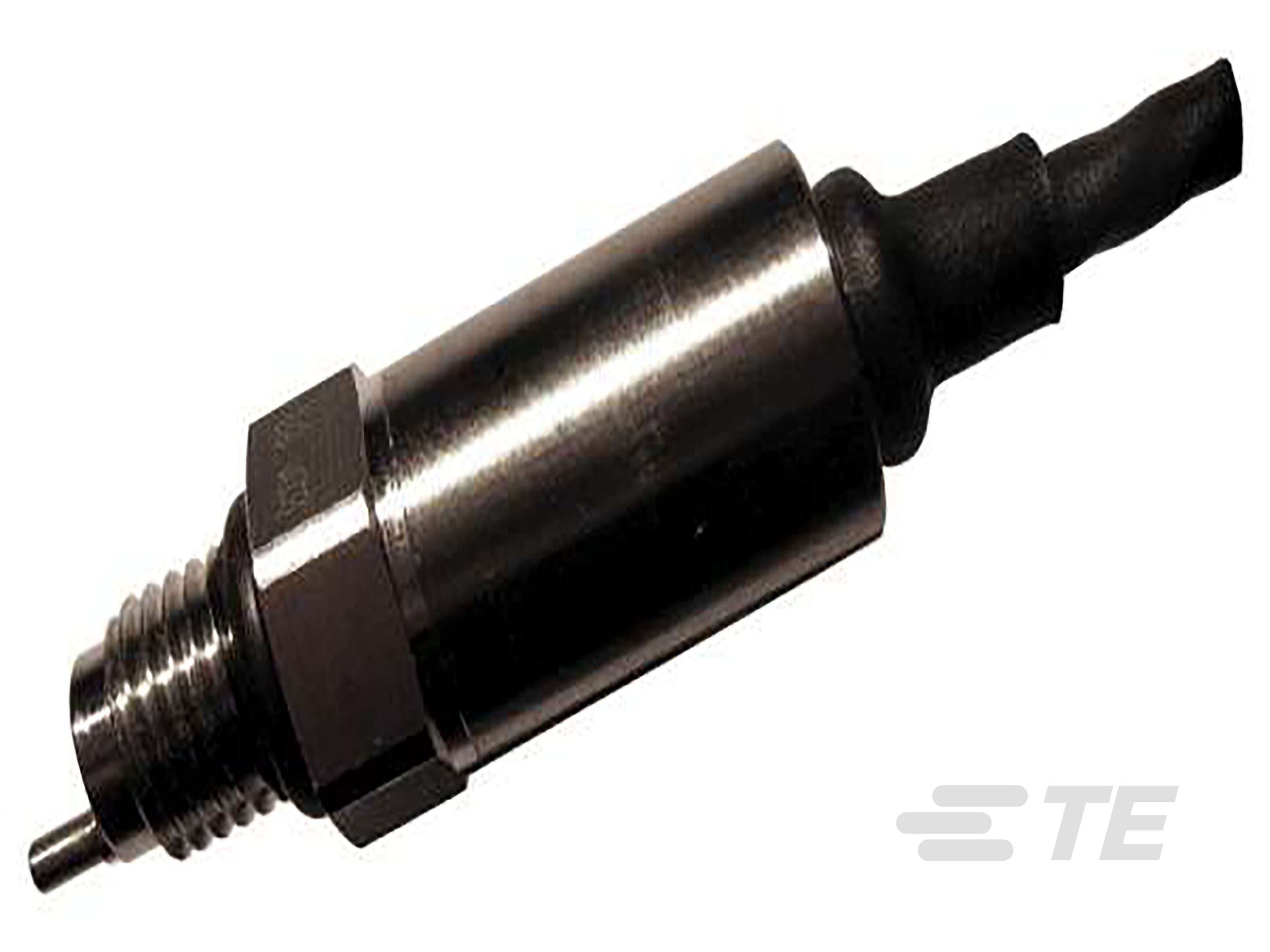

Specification	EPRB3-35BA-C00004

Accuracy	0.05 %
Applications	Industrial Automation
Maximum Pressure	174.05 PSI
Operating Pressure	87.02 PSI
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-40 °C
Output Type	Analog Voltage
Output Voltage (Max)	4.5 V
Output Voltage (Min)	0.5 V
Package / Case	Threaded, Cylinder
Port Code	M8
Port Diameter	8 mm
Port Gender	Male
Port Style	Threaded
Pressure Type	Absolute
Termination Style	Wire Leads
Voltage - Supply (Maximum)	32 V
Voltage - Supply (Minimum)	8 V

MEAS EPRB Series

...

Part	Maximum Pressure	Accuracy	Output Voltage (Min)	Output Voltage (Max)	Operating Pressure	Pressure Type	Port Style	Output Type	Applications	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Operating Temperature (Min)	Operating Temperature (Max)	Port Code	Port Gender	Features	Port Diameter	Port Feature	Termination Style	Package / Case	Voltage - Supply	Output Current (Max)	Output Current (Min)
TE Connectivity AMP Connectors EPRB2-30PG-C00003	87.02 PSI	0.25 %	0.5 V	4.5 V	29.01 PSI	Gauge	Threaded	Analog Voltage	Industrial Automation	8 V	32 V	-40 °C	150 °C	10-32 UNF	Male
TE Connectivity AMP Connectors 20010871-00
TE Connectivity AMP Connectors 20031928-00	0.44 PSI	0.25 %	0.5 V	4.5 V	0.22 PSI	Absolute	Threaded	Analog Voltage		8 V	32 V	-40 °C	150 °C	M8	Male	Temperature Compensated	8 mm
TE Connectivity AMP Connectors EPRB3-3KPA-C00004	174.05 PSI	0.05 %	0.5 V	4.5 V	87.02 PSI	Absolute	Threaded	Analog Voltage	Industrial Automation	8 V	32 V	-40 °C	150 °C		Male		0.3125 in	UNF	Wire Leads	Cylinder Threaded
TE Connectivity AMP Connectors EPRB2-1KPA-C00003	1740.45 PSI	0.25 %	0.5 V	4.5 V	870.2 PSI	Absolute	Threaded	Analog Voltage				-40 °C	150 °C		Male	Amplified Output Temperature Compensated	0.375 in	UNF			5 VDC
TE Connectivity AMP Connectors EPRB2-50PA-C20007	101.53 PSI	0.25 %			50.76 PSI	Absolute	Threaded	Analog Current	Industrial Automation	8 V	32 V	-40 °C	150 °C	10-32 UNF	Male				Wire Leads	Cylinder Threaded		20 mA	4 mA
TE Connectivity AMP Connectors EPRB2-1.5KP-C00005	2900.75 PSI	0.25 %			1450.38 PSI	Absolute	Threaded	Analog Voltage	Industrial Automation	8 V	32 V	-40 °C	150 °C		Male		0.3125 in	UNF	Wire Leads	Cylinder Threaded		20 mA	4 mA
TE Connectivity AMP Connectors EPRB2-20BA-C00002	580 PSI	0.25 %	0.5 V	4.5 V	290.08 PSI	Absolute	Threaded	Analog Voltage	Industrial Automation	8 V	32 V	-40 °C	150 °C		Male		10 mm	1.0 x	Wire Leads	Cylinder Threaded
TE Connectivity AMP Connectors EPRB1-700BA-C00003	15228.96 PSI	0.25 %	0.5 V	4.5 V	10152.64 PSI	Absolute	Threaded	Analog Voltage				-40 °C	150 °C	M8	Male	Amplified Output Temperature Compensated	8 mm				5 VDC
TE Connectivity AMP Connectors 20015301-00
