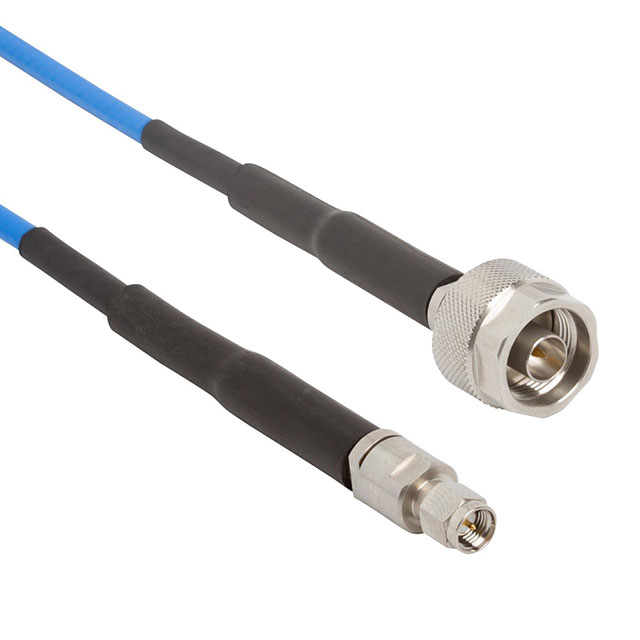

Specification	095-909-168M100

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Color	Blue
Frequency - Max	18 GHz
Length	39.4 in
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-55 °C
Overall Impedance	50 Ohms
Style	SMA, N-Type

095-909 Series

...

Part	Cable Type Size	Cable Type	1st Connector Mounting Feature	Cable Impedance	1st Connector	Ingress Protection Description	Ingress Protection IP Rating	Features	2nd Contact Gender	1st Contact Gender	Style	Color	Length	1st Connector Mounting Type	Frequency - Max	2nd Connector	Overall Impedance	2nd Connector Mounting Type	Length (ft)	Operating Temperature (Min)	Operating Temperature (Max)
McGill Microwave Systems 095-909-175-024	400	LMR	Bulkhead Front Side Nut	50 Ohms	N-Type Jack	Dust Tight Waterproof	IP67	Shielded	Male	Female	N-Type	Black	24 in	Panel Mount	6000 MHz	N-Type Plug Right Angle	50 Ohms	Free Hanging (In-Line)
McGill Microwave Systems 095-909-175L075	400	LMR	Bulkhead Front Side Nut	50 Ohms	N-Type Jack	Dust Tight Waterproof	IP67	Shielded	Male	Female	N-Type	Black	900 in	Panel Mount	6000 MHz	N-Type Plug Right Angle	50 Ohms	Free Hanging (In-Line)	75 ft
McGill Microwave Systems 095-909-174-240	400	LMR	Bulkhead Front Side Nut	50 Ohms	N-Type Jack	Dust Tight Waterproof	IP67	Shielded	Male	Female	N-Type	Black	240 in	Panel Mount	6000 MHz	N-Type Plug	50 Ohms	Free Hanging (In-Line)
McGill Microwave Systems 095-909-175-108	400	LMR	Bulkhead Front Side Nut	50 Ohms	N-Type Jack	Dust Tight Waterproof	IP67	Shielded	Male	Female	N-Type	Black	9 ft	Panel Mount	6000 MHz	N-Type Plug Right Angle	50 Ohms	Free Hanging (In-Line)
McGill Microwave Systems 095-909-174-012	400	LMR	Bulkhead Front Side Nut	50 Ohms	N-Type Jack	Dust Tight Waterproof	IP67	Shielded	Male	Female	N-Type	Black	12 in	Panel Mount	6000 MHz	N-Type Plug	50 Ohms	Free Hanging (In-Line)
McGill Microwave Systems 095-909-189-024	240	LMR	Bulkhead Front Side Nut	50 Ohms	RP-TNC Plug			Shielded	Male	Female	N-Type RP-TNC	Black	24 in	Panel Mount	6000 MHz	N-Type Plug Right Angle	50 Ohms	Free Hanging (In-Line)		-65 °C	165 °C
McGill Microwave Systems 095-909-175L050	400	LMR	Bulkhead Front Side Nut	50 Ohms	N-Type Jack	Dust Tight Waterproof	IP67	Shielded	Male	Female	N-Type	Black	15.24 m	Panel Mount	6000 MHz	N-Type Plug Right Angle	50 Ohms	Free Hanging (In-Line)
McGill Microwave Systems 095-909-186-018	240	LMR		50 Ohms	N-Type Plug			Shielded	Male	Male	N-Type	Black	18 in	Free Hanging (In-Line)	6000 MHz	N-Type Plug Right Angle	50 Ohms	Free Hanging (In-Line)		-65 °C	165 °C
McGill Microwave Systems 095-909-174-036	400	LMR	Bulkhead Front Side Nut	50 Ohms	N-Type Jack	Dust Tight Waterproof	IP67	Shielded	Male	Female	N-Type	Black	36 in	Panel Mount	6000 MHz	N-Type Plug	50 Ohms	Free Hanging (In-Line)
McGill Microwave Systems 095-909-174-108	400	LMR	Bulkhead Front Side Nut	50 Ohms	N-Type Jack	Dust Tight Waterproof	IP67	Shielded	Male	Female	N-Type	Black	9 ft	Panel Mount	6000 MHz	N-Type Plug	50 Ohms	Free Hanging (In-Line)
