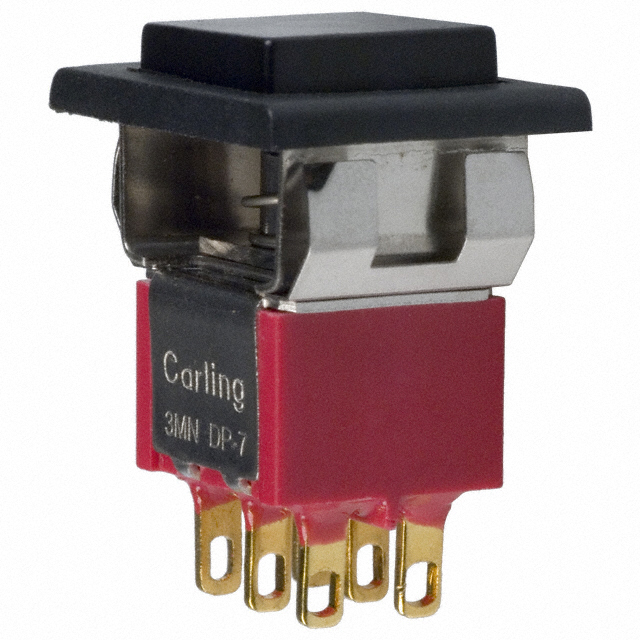

3MN-DP7-AP2/22-M1RE

Active

Carling Technologies

SWITCH PUSH DPDT 0.4VA 20V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH PUSH DPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

SWITCH PUSH DPDT 0.4VA 20V

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination Style	Switch Function	Voltage Rating - AC	Actuator Marking	Current Rating (Amps)	Voltage Rating - DC	Mounting Type	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Type	Type	Color - Actuator/Cap
Carling Technologies 3MN-DP7-AP2/22-M1RE	12.7 mm	15.24 mm	Solder Lug	On-Mom	20 V	No Marking	0.4 VA	20 V	Panel Mount, Snap-In	50000 Cycles	-30 ░C	85 °C	DPDT	Button, Square	Standard	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch DPDT Standard Panel Mount, Snap-In
