CAB.922
ObsoleteTaoglas Limited
COAX CBL U.FL TO SMA 3.7"
CAB.922
ObsoleteTaoglas Limited
COAX CBL U.FL TO SMA 3.7"
Description
General part information
CAB.922

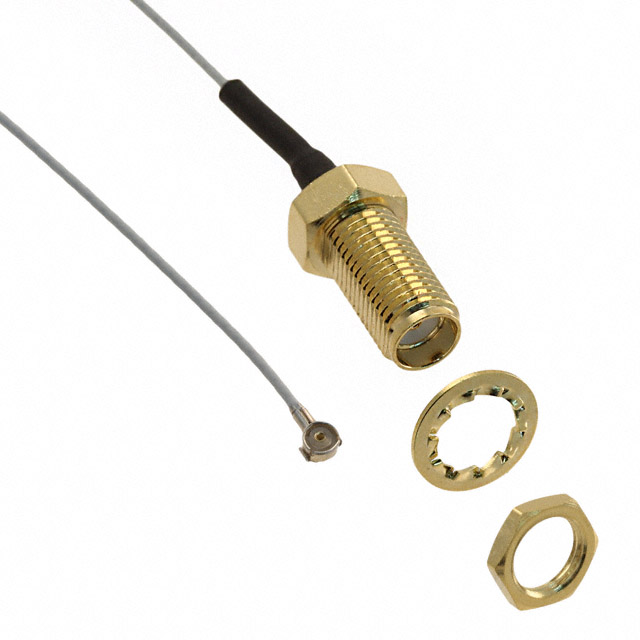

Cable Assembly Coaxial U.FL (UMCC) to SMA 0.81mm OD Coaxial Cable 3.740" (95.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CAB.922 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, U.FL (UMCC) Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Outer Diameter | 0.81 mm |
| Cable Type | Coaxial Cable, 0.81mm OD Coaxial Cable, OD Coaxial Cable |
| Cable Type Size | 0.81 mm |
| Color | Gray |
| Features | Shielded |
| Frequency - Max | 6000 MHz |
| Length | 3.74 in |
| Overall Impedance | 50 Ohms |
| Style | U.FL (UMCC), SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
