Description
General part information
LFSPXO076039

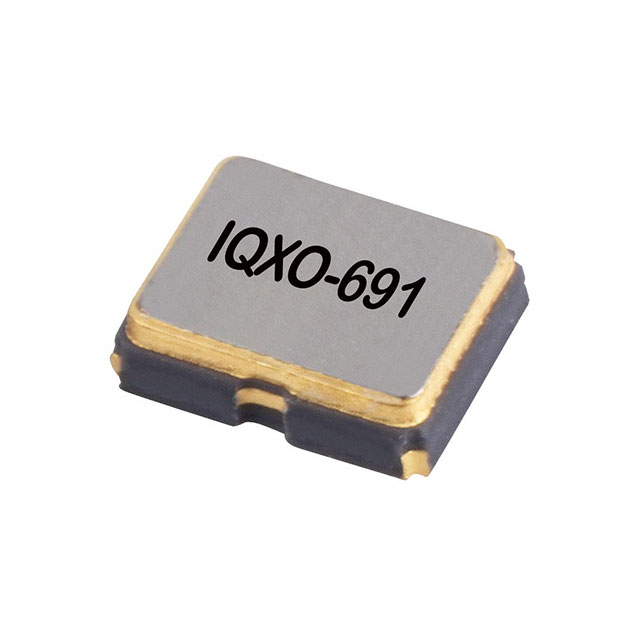

24 MHz XO (Standard) CMOS Oscillator 0.9V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | LFSPXO076039 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 100 µA |
| Current - Supply (Max) | 10 mA |
| Frequency | 24 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.039 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply | 0.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
