XB5EVM8
ActiveLED PANEL MOUNT INDICATOR, ROUND, YELLOW, 240 VAC, 22 MM, IP66, IK05, NEMA 4X, NEMA 13
XB5EVM8
ActiveLED PANEL MOUNT INDICATOR, ROUND, YELLOW, 240 VAC, 22 MM, IP66, IK05, NEMA 4X, NEMA 13
Description
General part information
XB5EVM8

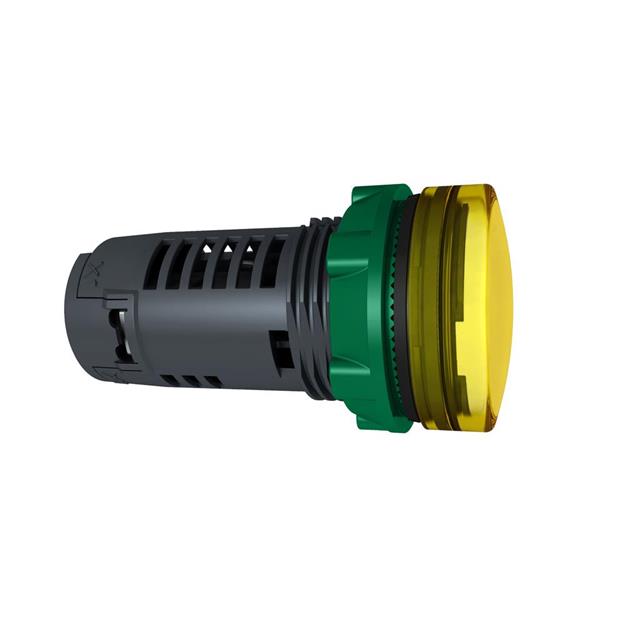

The XB5EVM8 from Schneider Electric is a Harmony XB5 yellow monolithic pilot light Ø22 plain lens with integral LED. This Harmony XB5 complete control buttons features 1KV conforming to IEC 61000-4-5 surge withstand, class II conforming to IEC 60536 overvoltage category, IP66 conforming to IEC 60529 IP degree of protection, NEMA 13 NEMA 4X NEMA degree of protection, IK05 conforming to IEC 50102 IK degree of protection, EN/IEC 60947-5-4, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 and JIS C 4520 standards.
Technical Specifications
Parameters and characteristics for this part
| Specification | XB5EVM8 |
|---|---|
| Current | 14 mA |
| Ingress Protection | IP69, IP67, NEMA 4X, 13, IP69K, IP66 |
| Lens Color | Yellow |
| Lens Diameter | 29 mm |
| Lens Style | Round, Flat Top |
| Panel Cutout Dimension | 0.87 " |
| Panel Cutout Shape | Round |
| Ratings | AC |
| Termination Style | Screw Terminal |
| Type | LED |
| Voltage (Max) | 240 V |
| Voltage (Min) | 230 V |
