Description
General part information

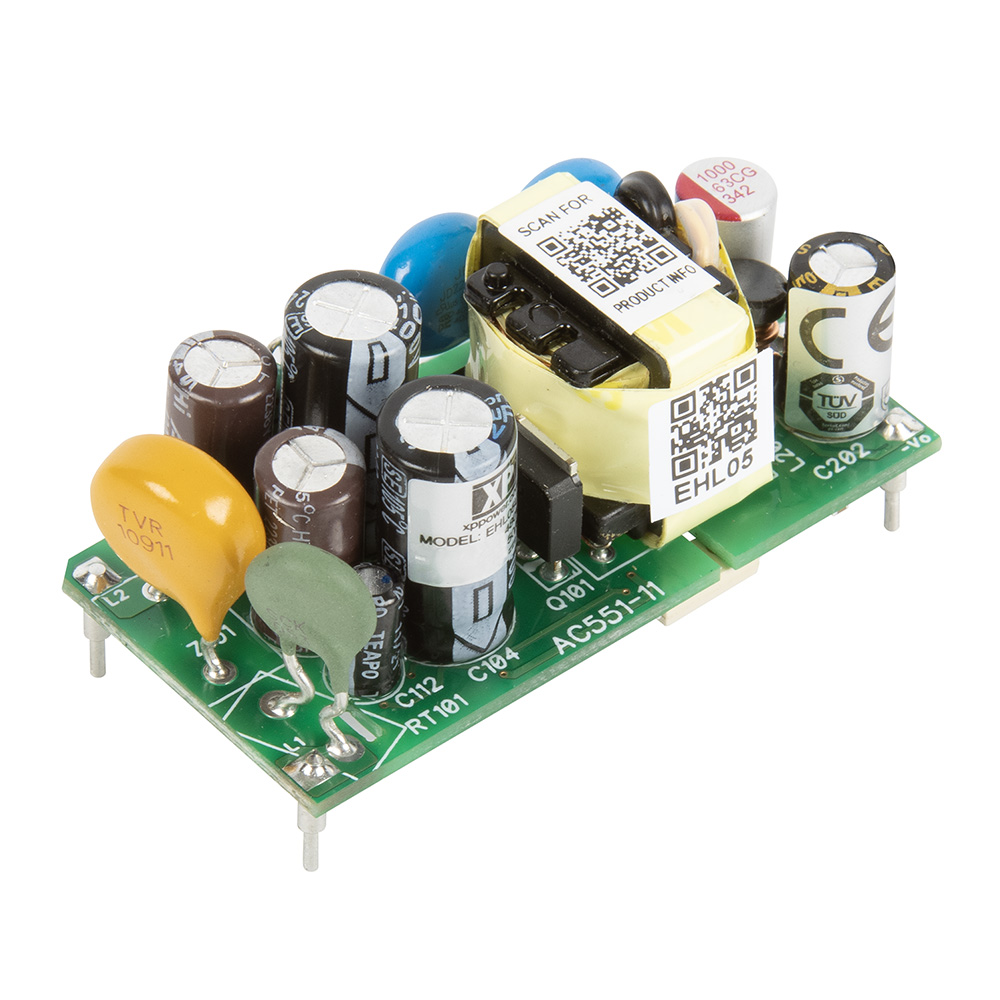

EHL05US15-P
Open Frame AC DC Converters 1 Output 15V 330mA 85 ~ 528 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | EHL05US15-P |
|---|---|
| Applications | ITE (Commercial), Household Appliances |
| Approval Agency | cURus, UKCA, TUV, CE |
| Current - Output (Max) | 330 mA |
| Efficiency | 83 % |
| Line Regulation | 0.5 % |
| Load Regulation (Percent) | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 5 W |
| Size / Dimension Height | 0.88 in |
| Size / Dimension Length | 1.94 in |
| Size / Dimension Width | 0.98 in |
| Standard Number | 60335-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 528 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output 1 | 15 V |
