EN16ABVM22B0F20
ActiveTT Electronics/BI

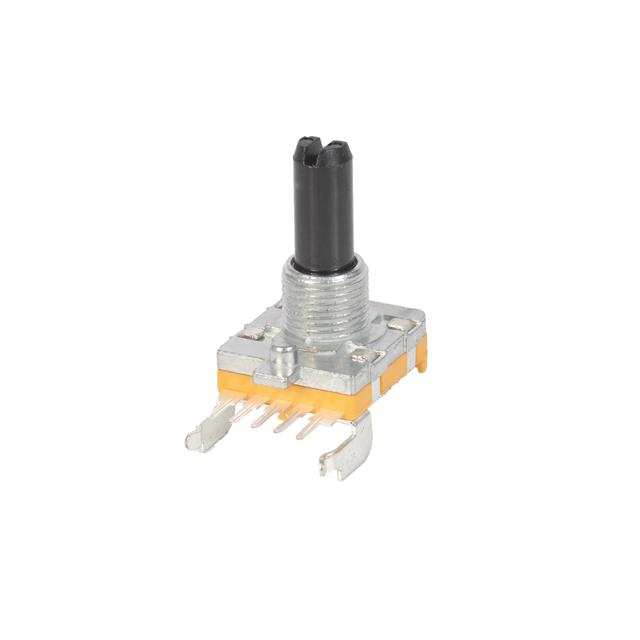

16 MM ABSOLUTE ENCODER
EN16ABVM22B0F20
ActiveTT Electronics/BI
16 MM ABSOLUTE ENCODER
Description
General part information
EN16ABVM22B0F20
Rotary Encoder Absolute Binary (Absolute) User Selectable
Technical Specifications
Parameters and characteristics for this part
| Specification | EN16ABVM22B0F20 |
|---|---|
| Actuator Type | Shaft |
| Built in Switch | No |
| Detent | Yes |
| Encoder Type | Absolute |
| Mounting Type | Through Hole, PCB |
| Orientation | User Selectable |
| Output Type | Binary (Absolute) |
| Rotational Life (Cycles Min) | 30 K |
| Termination Style | PC Pin |
| Voltage - Supply | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
