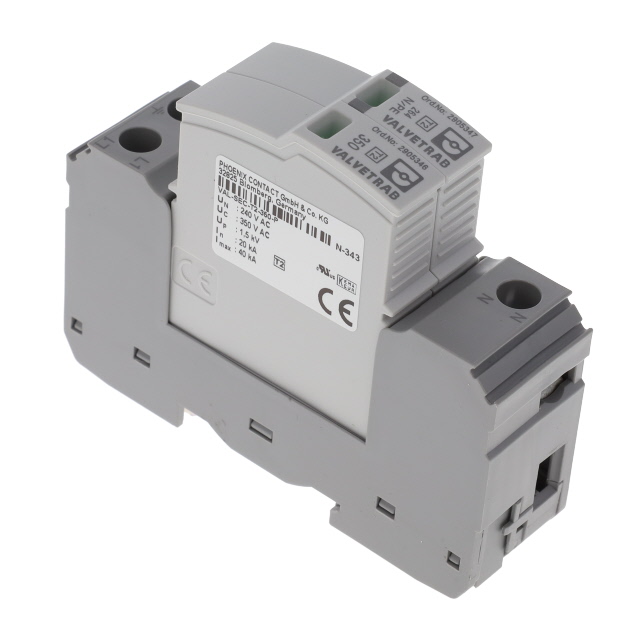

2905341
ActivePhoenix Contact
SPD TYPE 2 350VAC MCOV 1 POLE
2905341
ActivePhoenix Contact
SPD TYPE 2 350VAC MCOV 1 POLE
Description
General part information
2905341
SPD TYPE 2 350VAC MCOV 1 POLE
Technical Specifications
Parameters and characteristics for this part
| Specification | 2905341 |
|---|---|
| Approval Agency | CB, cUR, cURus, EAC, UR |
| Current - Discharge (Max) | 40 kA |
| Current - Discharge (Nom) | 20 kA |
| Current - Short Circuit Rating (SCCR) | 50 kA |
| Form | Module, Base |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Type 2 |
| Voltage - Continuous Operating (Max) (MCOV) | 350 VDC |
| Voltage - Protection Level (VP) (2416) | 1.9 kV |
