B82111B0000C018
ObsoleteEPCOS - TDK Electronics
FIXED IND 11UH 4A 20 MOHM TH
B82111B0000C018
ObsoleteEPCOS - TDK Electronics
FIXED IND 11UH 4A 20 MOHM TH
Description
General part information
B82111B0000C018

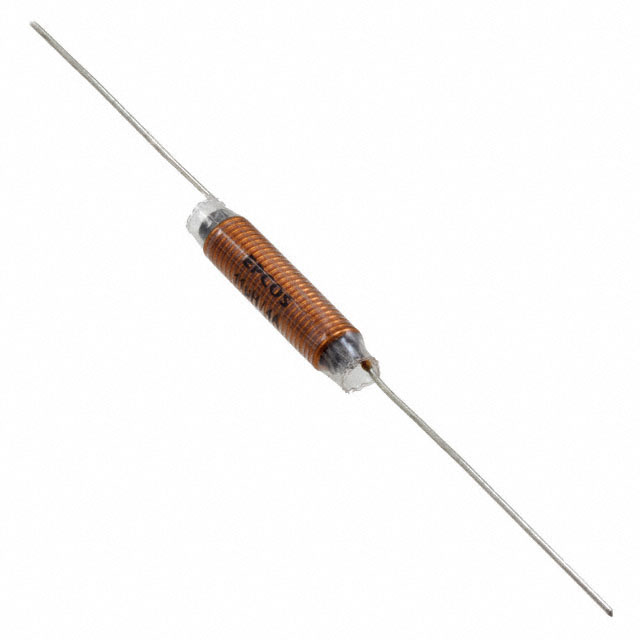

11 µH Unshielded Drum Core, Wirewound Inductor 4 A 20mOhm Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B82111B0000C018 |
|---|---|
| Current Rating | 4 A |
| DC Resistance (DCR) | 20 mOhm |
| Frequency - Self Resonant | 150 MHz |
| Inductance | 11 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.256 in |
| Size / Dimension Length | 0.965 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
