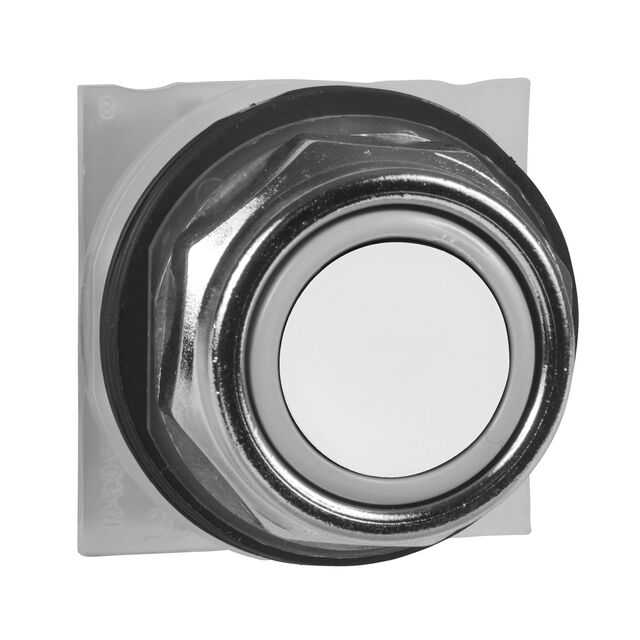

9001KR1WH5Y238
ActiveSCHNEIDER ELECTRIC
PUSH BUTTON 600VAC 10A 30MM T-K
9001KR1WH5Y238
ActiveSCHNEIDER ELECTRIC
PUSH BUTTON 600VAC 10A 30MM T-K
Description
General part information
9001KR1WH5Y238
Pushbutton Switch Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001KR1WH5Y238 |
|---|---|
| Actuator Type | Round, Flush, Button |
| Color - Actuator/Cap | White |
| Current Rating | 10 A |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Mechanical Life (Cycles) | 5000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 30 mm |
| Panel Cutout Shape | Circular |
| Termination Style | Screw Terminal |
| Type | Standard |
| Voltage Rating - AC | 600 VAC |
