53119-1
ActiveTE Connectivity AMP Connectors

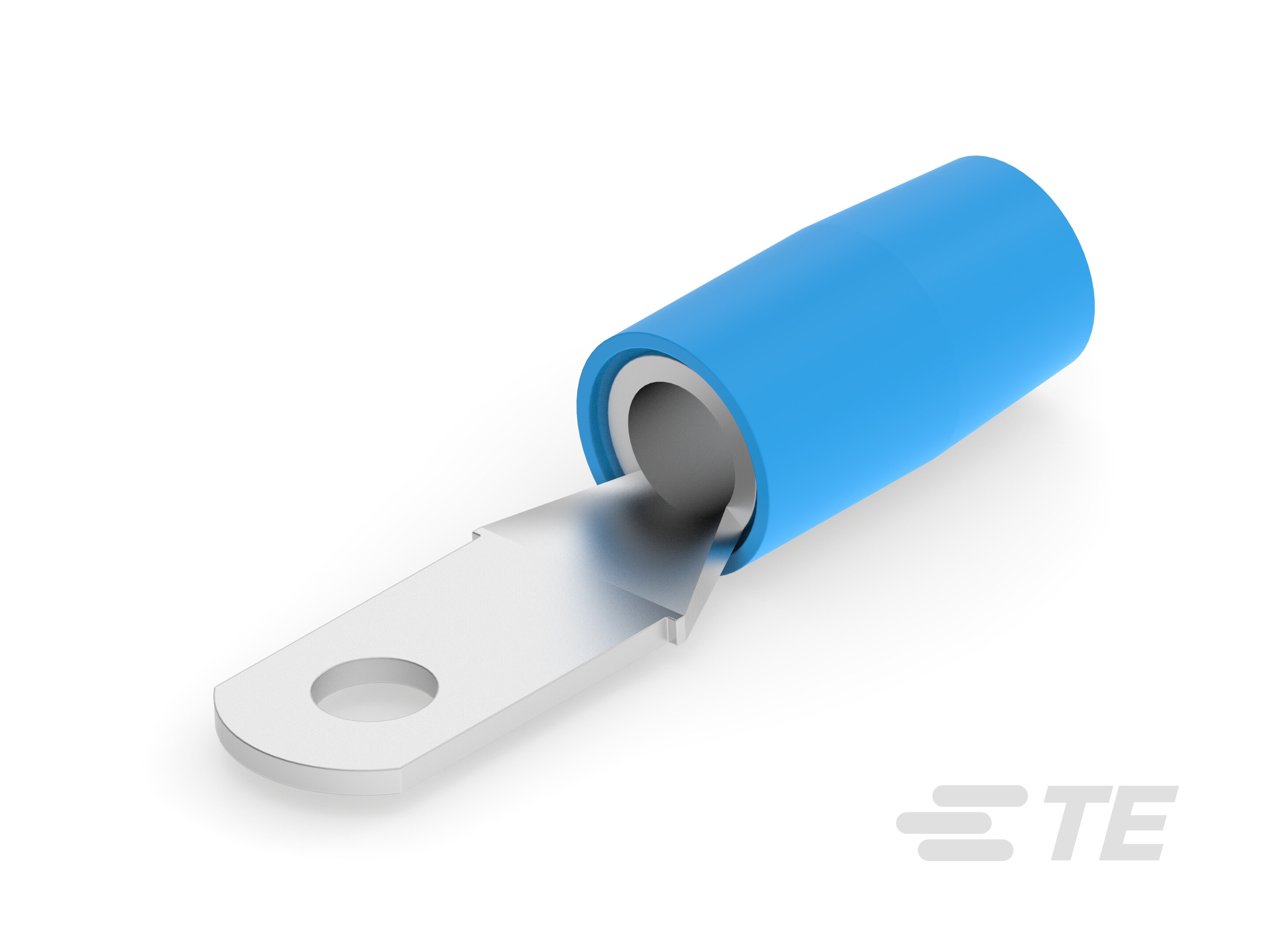

RING TONGUE TERMINAL, M5, #10, 6 AWG, 15 MM², TERMINYL SERIES, BLUE
53119-1
ActiveTE Connectivity AMP Connectors
RING TONGUE TERMINAL, M5, #10, 6 AWG, 15 MM², TERMINYL SERIES, BLUE
Description
General part information
53119-1
Rectangular Tongue Terminal, 6 AWG, #10 Stud, 4.82 mm [.19 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 53119-1 |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | Insulated |
| Length - Overall | 1.7 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Flat Sided |
| Termination | Crimp |
| Thickness | 0.045 in |
| Width - Outer Edges | 0.398 in |
| Wire Gauge | 6 AWG |
