P522306
ActiveKYOCERA AVX
RF ANT 850MHZ/900MHZ FLAT PATCH
P522306
ActiveKYOCERA AVX
RF ANT 850MHZ/900MHZ FLAT PATCH
Description
General part information
P522306

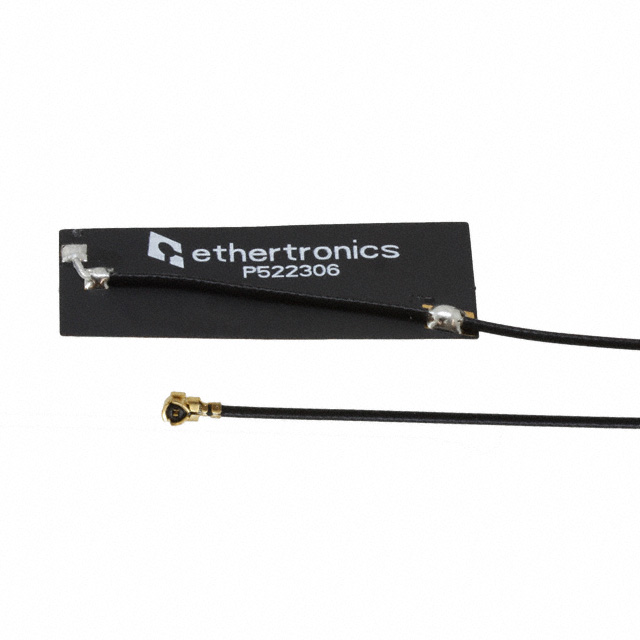

RF ANTENNA CDMA, DCS, GSM, PCS, UMTS, WCDMA Flat Patch U.FL (UMCC), IPEX MHF1 Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | P522306 |
|---|---|
| Antenna Type | Flat Patch |
| Applications | CDMA, DCS, GSM, WCDMA, UMTS, PCS |
| Features | Cable, 200mm |
| Frequency (Center/Band) | 1.8GHz, 850MHz, 2.1GHz, 900MHz, 1.9GHz |
| Frequency (Center/Band) - 1 | 850 MHz |
| Frequency (Center/Band) - 2 | 900 MHz |
| Frequency (Center/Band) - 3 | 1.8 GHz |
| Frequency (Center/Band) - 4 | 1.9 GHz |
| Frequency (Center/Band) - 5 | 2.1 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 824 MHz |
| Frequency Range (Band 2) Maximum | 2.17 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Gain | 3.2 dBi, 3.8 dBi, 2.5 dBi, 1.7 dBi |
| Height (Max) | 0.049 in |
| Mounting Type | Adhesive |
| Number of Bands | 5 |
| Power - Max | 2 VA |
| RF Family/Standard | Cellular |
| Termination | IPEX MHF1, U.FL (UMCC) |
| Termination Type | U.FL, I-PEX MHF1 |
| VSWR | 3 |
