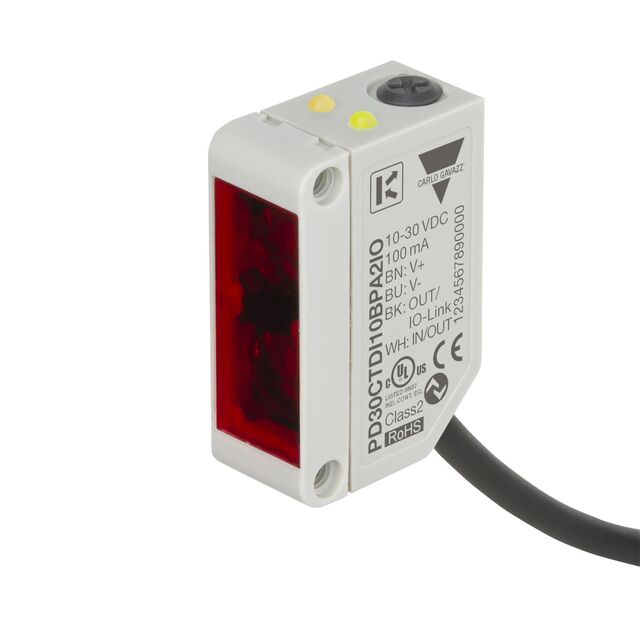

PD30CTDI10BPA2IO
ActiveCarlo Gavazzi Inc.
SENSOR: PHOTOELECTRIC; RANGE: 1M; PNP/NPN NO/NC; USUP: 10÷30VDC
PD30CTDI10BPA2IO
ActiveCarlo Gavazzi Inc.
SENSOR: PHOTOELECTRIC; RANGE: 1M; PNP/NPN NO/NC; USUP: 10÷30VDC
Description
General part information
PD30CTDI10BPA2IO
Reflective, Diffuse Optical Sensor 39.37" (1m) Push-Pull, NPN/PNP
Technical Specifications
Parameters and characteristics for this part
| Specification | PD30CTDI10BPA2IO |
|---|---|
| Adjustment Type | Adjustable, Potentiometer |
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Infrared |
| Light Source Wavelength (Infrared) | 850 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | PNP, NPN, Push-Pull |
| Response Time | 500 µs |
| Sensing Distance | 39.37 " |
| Sensing Method | Reflective, Diffuse |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
