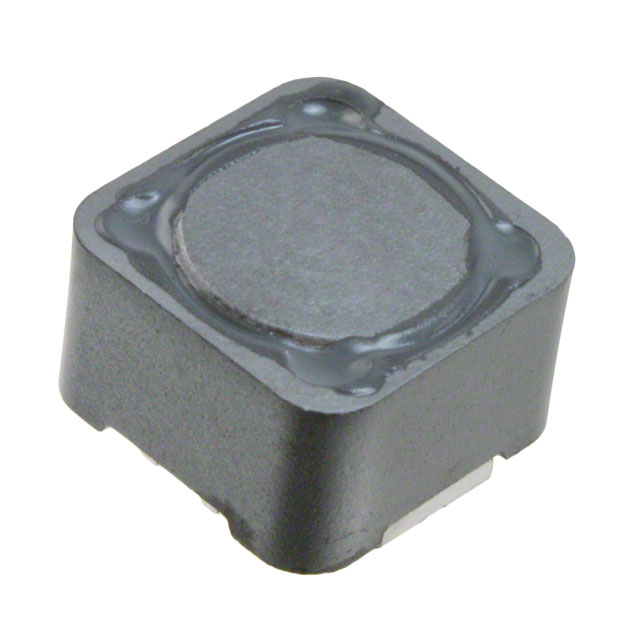

B82477G4223M000
22 µH Shielded Drum Core, Wirewound Inductor 3.6 A 38mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82477G4223M000 |
|---|---|
| Current - Saturation (Isat) | 4.25 A |
| Current Rating | 3.6 A |
| DC Resistance (DCR) (Max) | 38 mOhm |
| Height - Seated (Max) | 0.236 in |
| Inductance | 22 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.484 in |
| Size / Dimension Width | 0.484 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
