XPGDWT-XW-0000-00XPP
ActiveCreeLED, Inc.
XLAMP XP-G GEN 3 LIGHT EMITTING
XPGDWT-XW-0000-00XPP
ActiveCreeLED, Inc.
XLAMP XP-G GEN 3 LIGHT EMITTING
Description
General part information
XPGDWT-XW-0000-00XPP

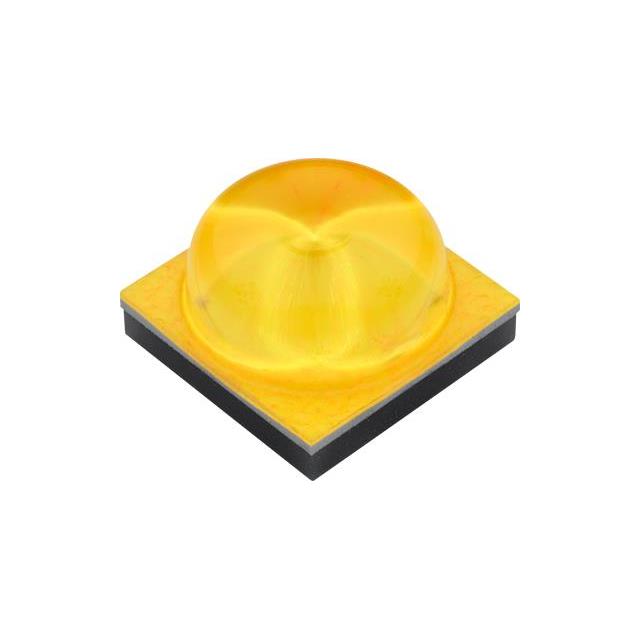

LED Lighting XLamp® XP-G3 White 2.82V 350mA 125° 1414 (3535 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | XPGDWT-XW-0000-00XPP |
|---|---|
| Color | White |
| Current - Max | 2 A |
| Current - Test | 350 mA |
| Height - Seated (Max) | 0.084 in |
| Mounting Type | Surface Mount |
| Package / Case | 1414 (3535 Metric) |
| Package Name | 1414 |
| Size / Dimension Length | 0.136 in |
| Size / Dimension Width | 0.136 in |
| Thermal Resistance of Package | 2 °C/W |
| Viewing Angle | 125 ° |
| Voltage - Forward (Vf) (Typ) | 2.82 V |
