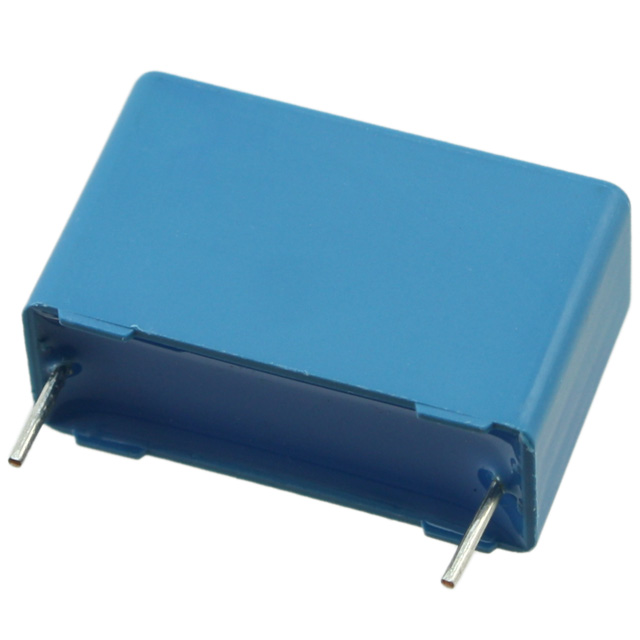

B32523Q1685J000
ActiveEPCOS - TDK Electronics
CAP FILM 6.8UF 5% 100VDC RADIAL
B32523Q1685J000
ActiveEPCOS - TDK Electronics
CAP FILM 6.8UF 5% 100VDC RADIAL
Description
General part information
B32523Q1685J000
6.8 µF Film Capacitor 63V 100V Polyester, Polyethylene Terephthalate (PET), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B32523Q1685J000 |
|---|---|
| Applications | EMI, Automotive, RFI Suppression |
| Capacitance | 6.8 µF |
| Dielectric Material | Metallized, Polyester, Polyethylene Terephthalate (PET) |
| Height - Seated (Max) | 16.51 mm |
| Lead Spacing | 0.886 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 1.043 in |
| Size / Dimension Width | 0.335 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 63 V |
| Voltage Rating - DC | 100 V |
