3870
ActiveAdafruit Industries LLC

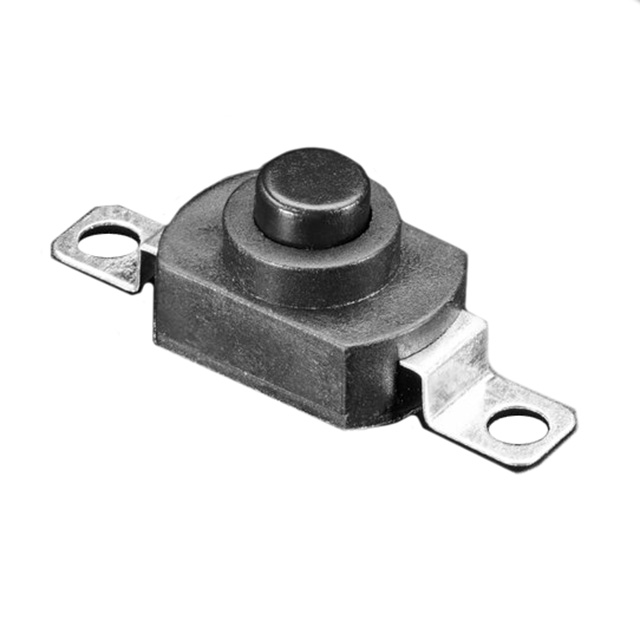

MINI ON/OFF PUSH-BUTTON SWITCH
3870
ActiveAdafruit Industries LLC
MINI ON/OFF PUSH-BUTTON SWITCH
Description
General part information
3870
Pushbutton Switch SPST Standard Free Hanging
Technical Specifications
Parameters and characteristics for this part
| Specification | 3870 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Round |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating | 3 A, 0.5 A |
| Mounting Type | Free Hanging |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Off |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 12 V |
