TS2P8M26-BP
ActiveSwitchcraft Inc.

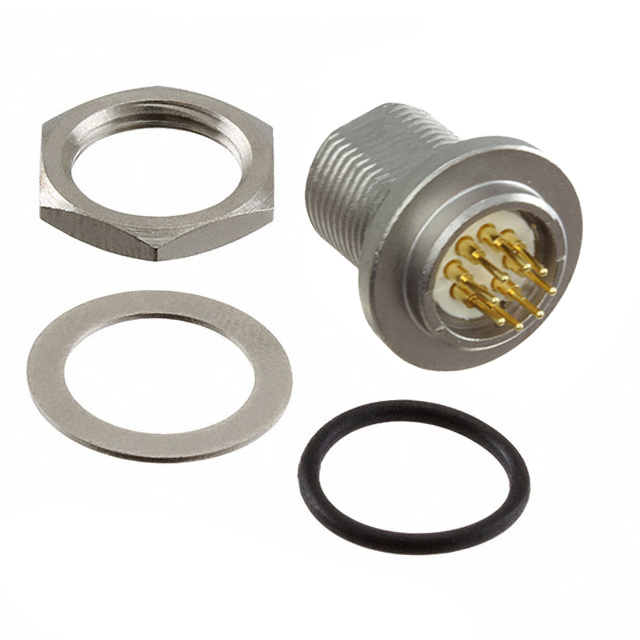

CIRCULAR PUSH PULL CONNECTORS FRONT PANEL MOUNT PC CONTACT, 8-26 M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TS2P8M26-BP
ActiveSwitchcraft Inc.
CIRCULAR PUSH PULL CONNECTORS FRONT PANEL MOUNT PC CONTACT, 8-26 M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TS2P8M26-BP | TS Series |
|---|---|---|
| Accessory Type | - | Cap (Cover), Sealing |
| Applications | Audio, Testing Equipment & Measurement, Agriculture, Medical, General | Audio, Testing Equipment & Measurement, Agriculture, Medical, General |
| Backshell Material, Plating | - | Copper Alloy, Nickel |
| Cable Opening | - | 0.106 in |
| Cable Opening | - | 0.142 in |
| Cable Opening | - | 2.7 mm |
| Cable Opening | - | 3.6 mm |
| Color | Silver | Silver, Black |
| Connector Type | Receptacle, Male Pins | Female Sockets, Plug, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | - | 8 - 10 A |
| Features | - | Coupling Nut, Backshell, Dust Tight, Water Resistant, Waterproof |
| For Use With/Related Products | - | Cable Plug |
| Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
| Insert Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut, Bulkhead - Rear Side Nut |
| Mounting Type | Through Hole, Panel Mount | Free Hanging (In-Line), Through Hole, Panel Mount |
| Number of Positions | 8 | 4 - 8 |
| Operating Temperature [Max] | 135 °C | 135 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Electroless Nickel | Electroless Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shielding | Shielded | Shielded |
| Termination | Solder | Crimp, Solder Cup, Solder |
| Voltage Rating | 30 VAC | 30 - 125 VAC |
TS Series
Headers & Wire Housings .100" Single Row Screw Machine Terminal Strip
| Part | Current Rating (Amps) | Orientation | Mounting Type | Contact Finish - Mating | Voltage Rating | Features | Applications | Ingress Protection | Insert Material | Shell Material | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Color | Termination | Contact Material | Primary Material | Backshell Material, Plating | Shell Finish | Connector Type | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Mounting Feature | For Use With/Related Products | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. TS2C8F26A | 10 A | Keyed | Free Hanging (In-Line) | Gold | 30 VAC | Backshell, Coupling Nut | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | IP66, IP67, IP68 | Liquid Crystal Polymer (LCP) | Copper Alloy | 8 | 135 °C | -40 °C | Shielded | Silver | Crimp, Solder Cup | Copper Alloy | Metal | Copper Alloy, Nickel | Electroless Nickel | Female Sockets, Plug | 0.106 in | 0.142 in | 2.7 mm | 3.6 mm | |||
Switchcraft Inc. TS2P5M20-B | 8 A | Keyed | Panel Mount, Through Hole | Gold | 125 VAC | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | IP66, IP67, IP68 | Liquid Crystal Polymer (LCP) | Copper Alloy | 135 °C | -40 °C | Shielded | Silver | Solder | Copper Alloy | Metal | Electroless Nickel | Male Pins, Receptacle | Bulkhead - Front Side Nut | |||||||||
Switchcraft Inc. TS2P4M20 | Keyed | Gold | 125 VAC | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | IP66, IP67, IP68 | Liquid Crystal Polymer (LCP) | Copper Alloy | 4 | 135 °C | -40 °C | Shielded | Silver | Crimp, Solder Cup | Copper Alloy | Metal | Electroless Nickel | Male Pins, Receptacle | Bulkhead - Rear Side Nut | ||||||||||
Switchcraft Inc. TS2CCAP | Dust Tight, Water Resistant, Waterproof | Black | Cable Plug | Cap (Cover), Sealing | ||||||||||||||||||||||||
Switchcraft Inc. TS2P8M26-BP | Keyed | Panel Mount, Through Hole | Gold | 30 VAC | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | IP66, IP67, IP68 | Liquid Crystal Polymer (LCP) | Copper Alloy | 8 | 135 °C | -40 °C | Shielded | Silver | Solder | Copper Alloy | Metal | Electroless Nickel | Male Pins, Receptacle | Bulkhead - Front Side Nut |
