341-026-560-207
ActiveEDAC Inc.

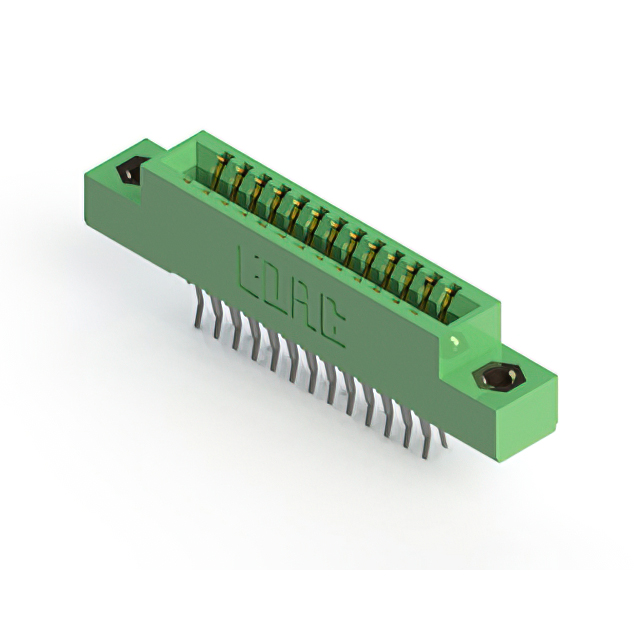

CONN EDGE DUAL FMALE 26POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
341-026-560-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 26POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-026-560-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions/Bay/Row [custom] | 13 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
341-026 Series
| Part | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Gender | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Material | Read Out | Contact Type | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Termination Rows | Contact Finish | Mounting Type | Card Type | Number of Positions | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Female | 10 Áin | 0.25 Ám | Solder | Copper Alloy | Dual | Semi Bellows | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Gold | Through Hole | Non Specified - Dual Edge | 26 | 13 | 2.54 mm | 0.1 in | 2 | |
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Female | 10 Áin | 0.25 Ám | Solder | Copper Alloy | Dual | Semi Bellows | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Gold | Through Hole | Non Specified - Dual Edge | 26 | 13 | 2.54 mm | 0.1 in | 2 | |||
EDAC Inc. | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Female | 10 Áin | 0.25 Ám | Solder | Copper Alloy | Dual | Semi Bellows | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Gold | Through Hole | Non Specified - Dual Edge | 26 | 13 | 2.54 mm | 0.1 in | 2 | |
EDAC Inc. | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Female | 10 Áin | 0.25 Ám | Solder | Copper Alloy | Dual | Semi Bellows | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Gold | Through Hole | Non Specified - Dual Edge | 26 | 13 | 2.54 mm | 0.1 in | 2 | |
EDAC Inc. | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Female | 10 Áin | 0.25 Ám | Solder | Copper Alloy | Dual | Semi Bellows | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Gold | Through Hole | Non Specified - Dual Edge | 26 | 13 | 2.54 mm | 0.1 in | 2 | |
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Female | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Copper Alloy | Dual | Semi Bellows | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Diallyl Phthalate (DAP) | 2 | Gold | Through Hole | Non Specified - Dual Edge | 26 | 13 | 2.54 mm | 0.1 in | 2 | |||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Female | 10 Áin | 0.25 Ám | Solder | Copper Alloy | Dual | Semi Bellows | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Gold | Through Hole | Non Specified - Dual Edge | 26 | 13 | 2.54 mm | 0.1 in | 2 | |||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | Female | 10 Áin | 0.25 Ám | Solder | Copper Alloy | Dual | Semi Bellows | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Gold | Through Hole | Non Specified - Dual Edge | 26 | 13 | 2.54 mm | 0.1 in | 2 | Card Extender | ||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | Solder | Copper Alloy | Dual | Semi Bellows | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Gold | Board Edge Straddle Mount | Non Specified - Dual Edge | 26 | 13 | 2.54 mm | 0.1 in | 2 | Card Extender | |||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Female | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Copper Alloy | Single | Semi Bellows | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Diallyl Phthalate (DAP) | 1 | Gold | Through Hole | Non Specified - Single Edge | 26 | 26 | 2.54 mm | 0.1 in | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 12.00 | |
Description
General part information
341-026 Series
26 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
