1709 SL005

Active

ALPHA WIRE

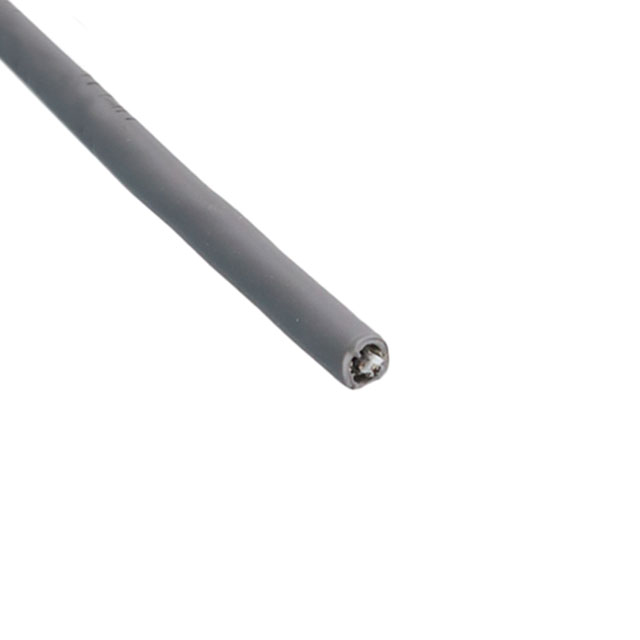

CABLE MIC 2COND 24AWG SLATE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE MIC 2COND 24AWG SLATE 100'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1709 SL005	1709 Series

Cable Type	Microphone	Microphone
Conductor Insulation	Polyethylene (PE)	Polyethylene (PE)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	10	10
Conductor Strand [diameter]	34 AWG	34 AWG
Jacket (Insulation) Diameter [diameter]	4.7 mm	4.7 mm
Jacket (Insulation) Diameter [diameter]	0.185 in	0.185 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.762 mm	0.762 mm
Jacket (Insulation) Thickness	0.03 in	0.03 in
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Number of Conductors	2	2
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	90 %	90 %
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Spiral	Spiral
Usage	Control, Communication	Control, Communication
Wire Gauge	24 AWG	24 AWG

CABLE MIC 2COND 24AWG SLATE 100'

Part	Conductor Insulation	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Shield Type	Conductor Strand [diameter]	Conductor Strand [custom]	Number of Conductors	Jacket Color	Jacket (Insulation) Material	Conductor Material	Length [x]	Length [x]	Shield Coverage	Length	Length
ALPHA WIRE 1709 SL005	Polyethylene (PE)	Communication, Control	-20 C	60 °C	24 AWG	Copper, Tinned	0.762 mm	0.03 in	4.7 mm	0.185 in	Microphone	Spiral	34 AWG	10	2	Slate	Poly-Vinyl Chloride (PVC)	Copper, Tinned	30.5 m	100 ft	90 %
ALPHA WIRE 1709 SL001	Polyethylene (PE)	Communication, Control	-20 C	60 °C	24 AWG	Copper, Tinned	0.762 mm	0.03 in	4.7 mm	0.185 in	Microphone	Spiral	34 AWG	10	2	Slate	Poly-Vinyl Chloride (PVC)	Copper, Tinned			90 %	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Conductor Microphone Cable Slate 24 AWG Spiral 100.0' (30.5m)
