Description
General part information

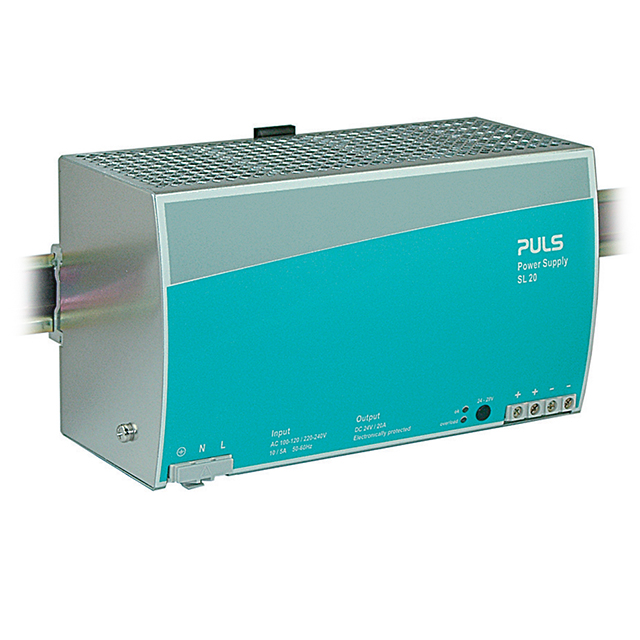

SL20.110
AC/DC DIN RAIL SUPPLY 24V 480W
Technical Specifications
Parameters and characteristics for this part
| Specification | SL20.110 |
|---|---|
| AC Voltage - Input (Max) (Range 1) | 132 VAC |
| AC Voltage - Input (Max) (Range 2) | 264 VAC |
| AC Voltage - Input (Min) (Range 1) | 85 VAC |
| AC Voltage - Input (Min) (Range 2) | 184 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus, cULus, CB |
| Current - Output (Max) | 20 A |
| Efficiency | 91.3 % |
| Features | Adjustable Output, Load Sharing |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 480 W |
| Size / Dimension Height | 4.88 in |
| Size / Dimension Length | 4.02 in |
| Size / Dimension Width | 8.66 in |
| Voltage - Output 1 | 24 V |
