Description
General part information

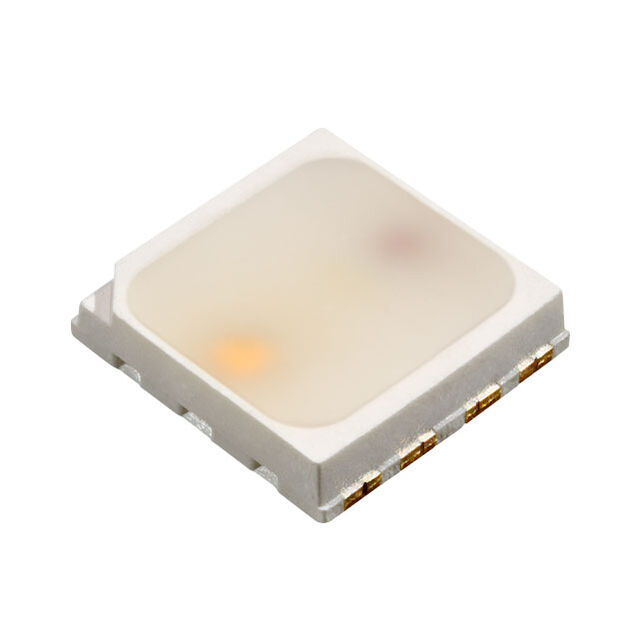

CLQ6C-TKW-S1L1R1H1RBB7935AA3
Red, Green, Blue, White (RGBW) 622nm Red, 528nm Green, 468nm Blue LED Indication - Discrete 2.1V Red, 3V Green, 3.1V Blue, 2.8V White 8-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CLQ6C-TKW-S1L1R1H1RBB7935AA3 |
|---|---|
| Color | White (RGBW), Green, Red, Blue |
| Configuration | Independent |
| Current - Test (Blue) | 100 mA |
| Current - Test (Green) | 100 mA |
| Current - Test (Red) | 100 mA |
| Current - Test (White) | 100 mA |
| Current - Test Colors | Blue, Red, White, Green |
| Height (Max) | 1.2 mm |
| Lens Color | Colorless |
| Lens Style | Flat Top, Oval, Rectangle |
| Lens Transparency | Diffused |
| Millicandela Rating (Blue) | 3002 mcd |
| Millicandela Rating (Green) | 10715 mcd |
| Millicandela Rating (Red) | 4430 mcd |
| Millicandela Rating (White - Cool) | 11915 mcd |
| Millicandela Rating (White) | 11915 mcd |
| Millicandela Rating Colors | White - Cool, White, Blue, Red, Green |
| Mounting Type | Surface Mount |
| Package / Case | No Lead, 8-SMD |
| Size / Dimension Length | 5.2 mm |
| Size / Dimension Width | 5 mm |
| Voltage - Forward (Vf) (Typ) (Blue) | 3.1 V |
| Voltage - Forward (Vf) (Typ) (Green) | 3 V |
| Voltage - Forward (Vf) (Typ) (Red) | 2.1 V |
| Voltage - Forward (Vf) (Typ) Color | Blue, White, Red, Green |
| Wavelength - Dominant (Blue) | 468 nm |
| Wavelength - Dominant (Green) | 528 nm |
| Wavelength - Dominant (Red) | 622 nm |
| Wavelength - Dominant Color | Red, Green, Blue |
