Y14816R00000A9L
ActiveVPG Foil Resistors
VCS331ZT 6R00000 0.05%
Y14816R00000A9L
ActiveVPG Foil Resistors
VCS331ZT 6R00000 0.05%
Description
General part information
Y14816R00000A9L

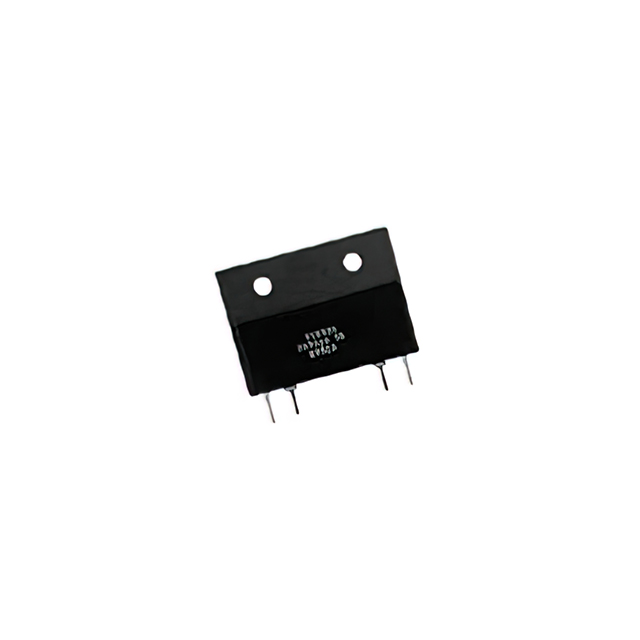

6 Ohms ±0.05% 10W Through Hole Resistor Radial - 4 Leads Current Sense, Non-Inductive Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | Y14816R00000A9L |
|---|---|
| Composition | Metal Foil |
| Features | Current Sense, Non-Inductive |
| Height - Seated (Max) | 1.063 in |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package Leads | 4 Leads |
| Package Name | Radial, Radial - 4 Leads |
| Power (Watts) | 10 W |
| Resistance | 6 Ohm |
| Size / Dimension Length | 1.339 in |
| Size / Dimension Width | 0.21 in |
| Temperature Coefficient | 0.2 ppm/°C |
| Tolerance | 0.05 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
