XS2M08MA230
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, SPST-NO, M8 X 1, OSISENSE XS SERIES, 24 V TO 210 V
XS2M08MA230
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, SPST-NO, M8 X 1, OSISENSE XS SERIES, 24 V TO 210 V
Description
General part information

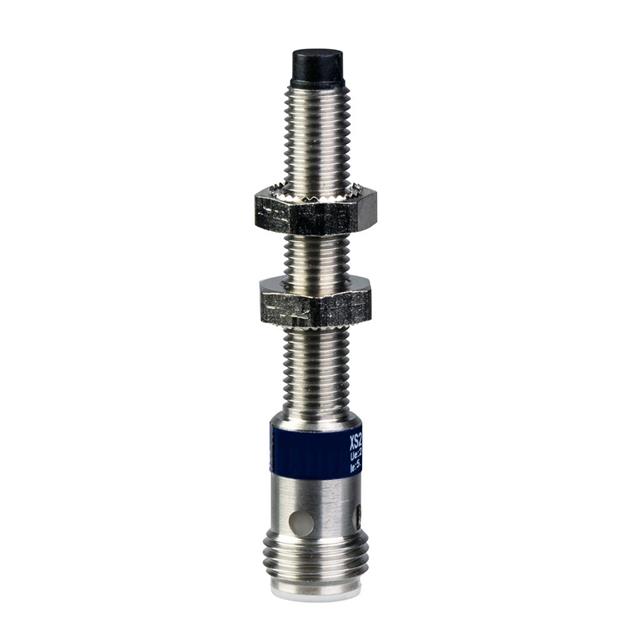

XS2M08MA230
Inductive Proximity Sensor Cylinder, Threaded - M8
Technical Specifications
Parameters and characteristics for this part
| Specification | XS2M08MA230 |
|---|---|
| Indicator | LED |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NO, 2-Wire |
| Package / Case | Cylinder, Threaded - M8 |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply | 24VAC/DC ~ 240VAC, 210VDC |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 24 VAC |
| Voltage - Supply (Option 1) | 210 VDC |
| Voltage - Supply (Range 1 Maximum) | 240 VAC |
| Voltage - Supply (Range 1 Minimum) | 24 VAC |
| Voltage - Supply (Range 2 Maximum) | 210 VDC |
| Voltage - Supply (Range 2 Minimum) | 210 VDC |
| Voltage - Supply Maximum | 240 VAC |
| Voltage - Supply Minimum | 24 VAC |
