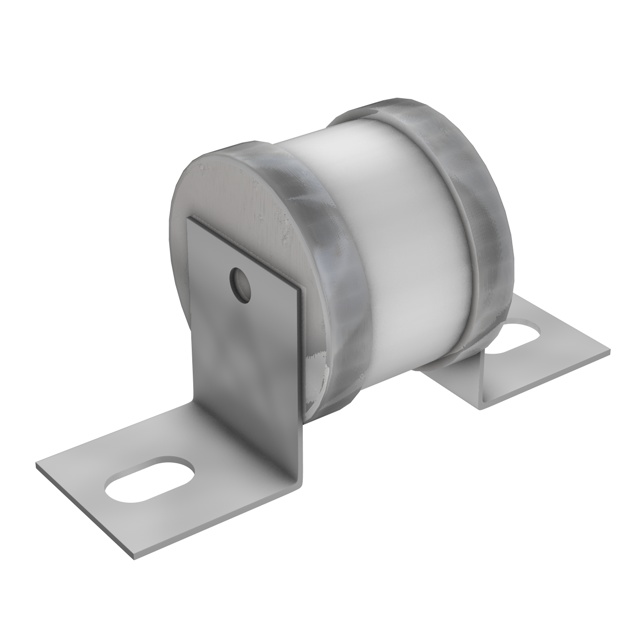

200LMT
ActiveEaton - Electronics Division
SEMI,GP,UK,240V,200A ROHS COMPLIANT: YES
200LMT
ActiveEaton - Electronics Division
SEMI,GP,UK,240V,200A ROHS COMPLIANT: YES
Description
General part information
200LMT
200A 240 VAC 150 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 200LMT |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UR, CE |
| Breaking Capacity | 200 kA |
| Current Rating | 200 A |
| Fuse Type | Cartridge |
| Melting I²t | 1500 |
| Mounting Type | Bolt Mount |
| Package / Case | Rectangular, Blade |
| Size / Dimension Diameter | 1.5 in |
| Size / Dimension Length | 1.22 in |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 150 VDC |
