Description
General part information

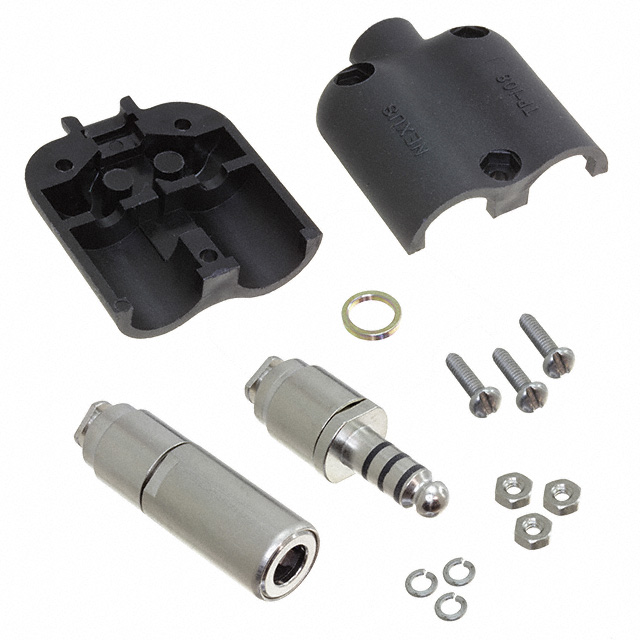

TP-108
Phone Plug, Biaxial 8 Conductor Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | TP-108 |
|---|---|
| Actual Diameter | 0.281 in |
| Body Color | Black, Silver |
| Connector Type | Phone Plug, Biaxial |
| Contact Material | Brass |
| Contact Material - Plating | Nickel |
| Gender | Female, Male |
| Housing Material | Plastic |
| Includes | Screws, Washers, Connectors, Strain Relief, Shell, Nuts |
| Includes Total Count | 14 pcs |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 8 Conductors |
| Number of Contacts | 8 Contacts |
| Shielding | Shielded |
| Signal Lines (Count) | 8 Conductor |
| Termination | Solder |
