76-FIFD22-250C
ActiveNTE Electronics, Inc
PVC FULLY INS FEM DISCON 100 BAG
76-FIFD22-250C
ActiveNTE Electronics, Inc
PVC FULLY INS FEM DISCON 100 BAG
Description
General part information
76-FIFD22-250C

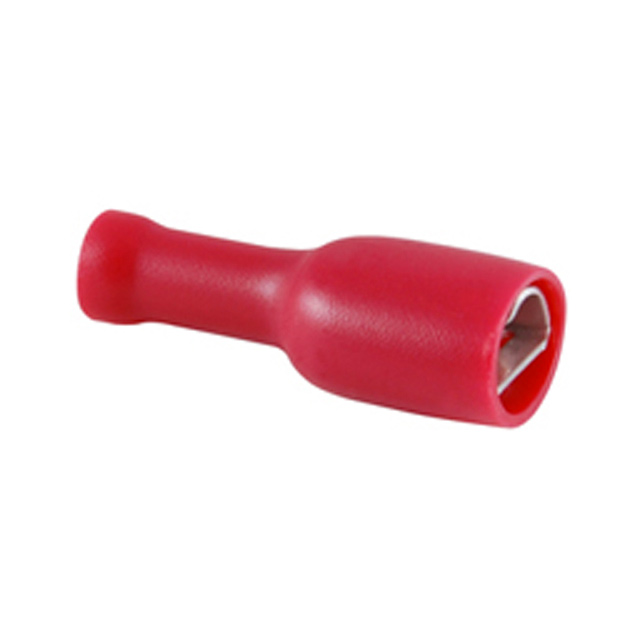

0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 76-FIFD22-250C |
|---|---|
| Color | Red |
| Contact Finish | Electro-Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Fully Insulated |
| Length - Overall | 0.866 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.311 in |
| Tab Thickness | 0.032 in |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
