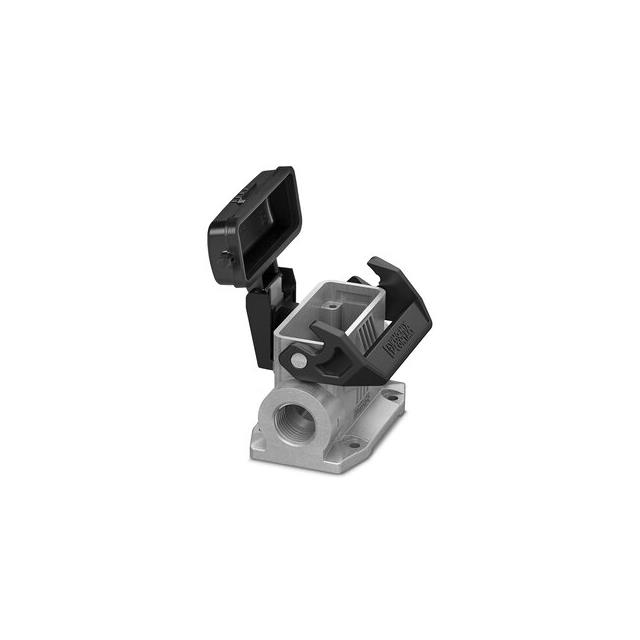

Specification	1424373

Connector Type	Base - Box Mount
Features	Feed Through, Cover, Salt Water Resistant
Housing Color	Gray
Housing Material	Die Cast, Aluminum
Ingress Protection Description	Dust Tight, Waterproof, Water Resistant
Ingress Protection IP Rating	IP67, IP66
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Size	D15
Size / Dimension Height	2.047 in
Size / Dimension Length	3.15 in
Size / Dimension Width	2.008 in
Style	Side Entry
Thread Size	PG21
