IL13P-SE-SJT-3160-500
ActiveTE Connectivity AMP Connectors
IL13P-SE-SJT-3160-500
IL13P-SE-SJT-3160-500
ActiveTE Connectivity AMP Connectors
IL13P-SE-SJT-3160-500
Description
General part information
IL13P-SE-SJT-3160-500

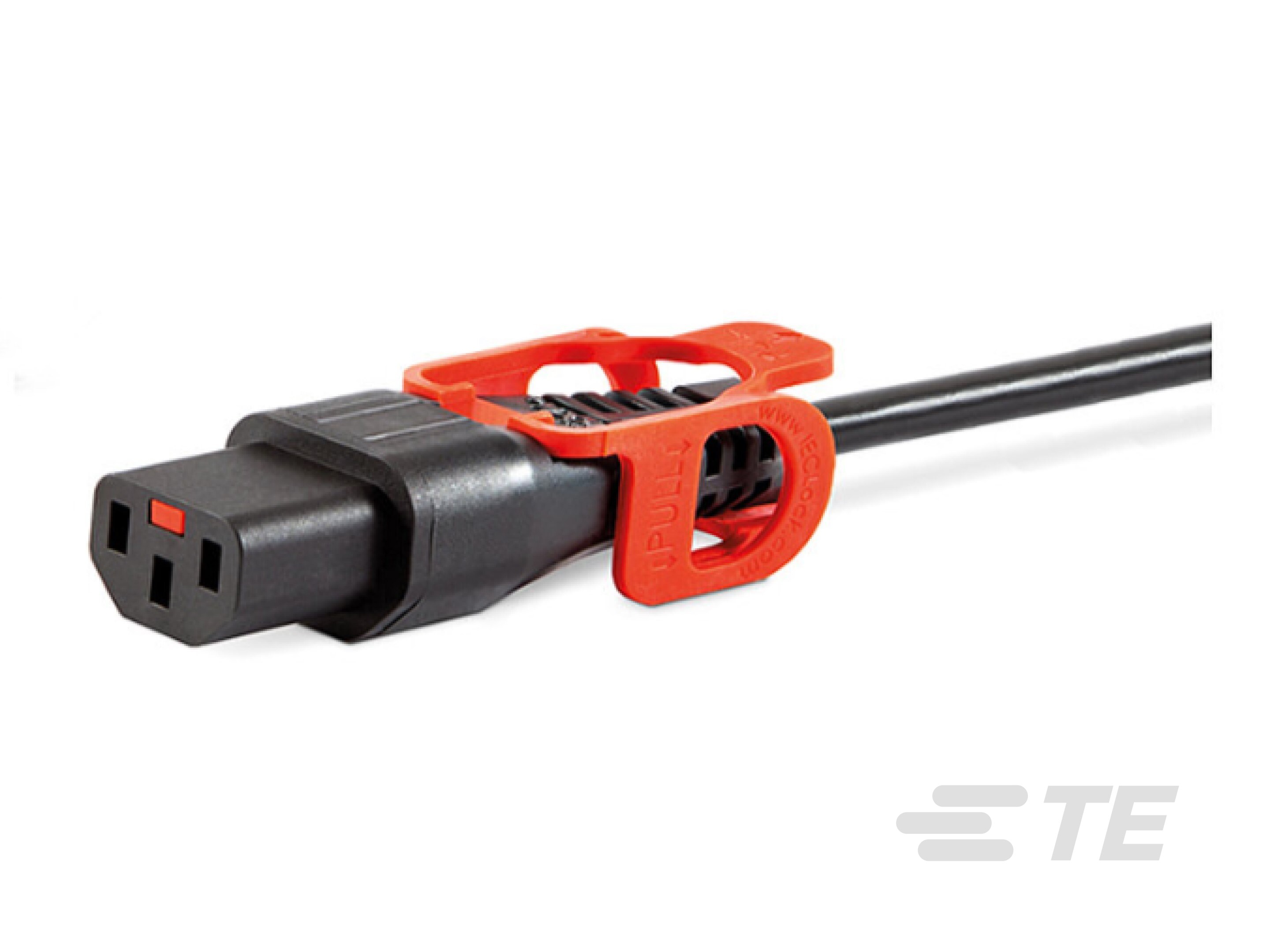

250 VAC, 15 A, 500 mm [19.68 in], IP20, UL 94V-2, 2.08 mm² Wire, Black, IEC Power Cords
Technical Specifications
Parameters and characteristics for this part
| Specification | IL13P-SE-SJT-3160-500 |
|---|---|
| 1st Connector | IEC 320-C13 |
| 2nd Connector | Cable |
| Color | Black |
| Cord Type | SJT |
| Current Rating | 10 A |
| Length | 16.4 ft |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Shielding | Unshielded |
| Style | Leads, Female Sockets (Slots) |
| Voltage Rating | 250 V |
| Wire Gauge | 18 AWG |
