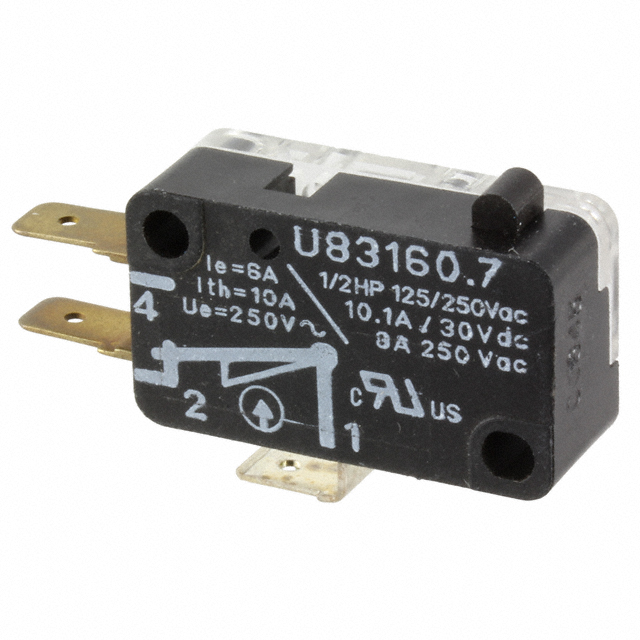

831607C6.0

Active

Crouzet

SWITCH SNAP ACTION SPDT 6A 250V

Search across all available documentation for this part.

Active

Crouzet

SWITCH SNAP ACTION SPDT 6A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SNAP ACTION SPDT 6A 250V

Part	Switch Function	Release Force	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Voltage Rating - AC	Circuit	Operating Position	Operating Position	Overtravel	Overtravel	Electrical Life	Actuator Type	Operating Force	Current Rating (Amps)
Crouzet 831607C6.0	On-Mom	153 gf	Quick Connect - 0.187" (4.7mm)	Chassis Mount	85 °C	-40 °C	10000000 Cycles	250 V	SPDT	14.8 mm	0.583 in	0.051 in	1.3 mm	100000 Cycles	Round (Pin Plunger)	408 gf	6 A
Crouzet 83160705	On-Mom	153 gf	Quick Connect - 0.187" (4.7mm)	Chassis Mount	85 °C	-40 °C	10000000 Cycles	250 V	SPST-NC	14.8 mm	0.583 in	0.051 in	1.3 mm	100000 Cycles	Round (Pin Plunger)	408 gf	6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount
