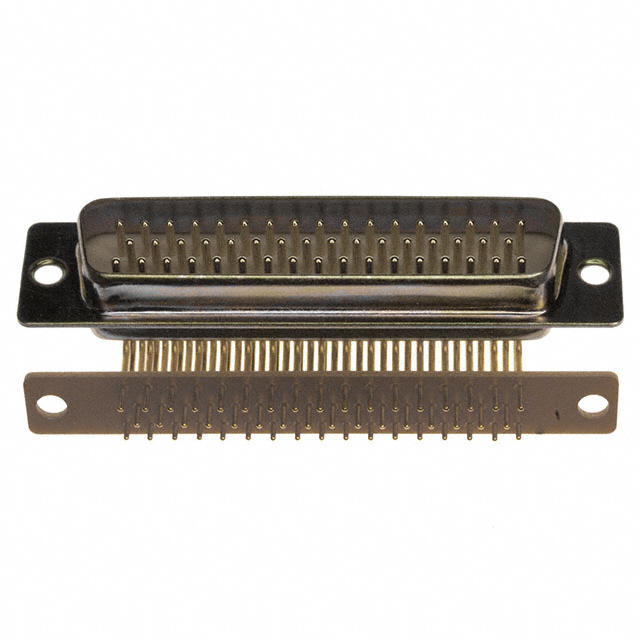

174-E50-111R001
ObsoleteMH Connectors
CONN D-SUB PLUG 50POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
174-E50-111R001
ObsoleteMH Connectors
CONN D-SUB PLUG 50POS R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 174-E50-111R001 |
|---|---|
| Backset Spacing | 9.4 mm |
| Backset Spacing | 0.37 in |
| Color | White |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 50 |
| Number of Rows | 3 |
| Shell Material, Finish | Steel, Yellow Chromate Plated |
| Shell Size, Connector Layout | 5 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
174-E50-111R001
50 Position D-Sub Plug, Male Pins Connector
