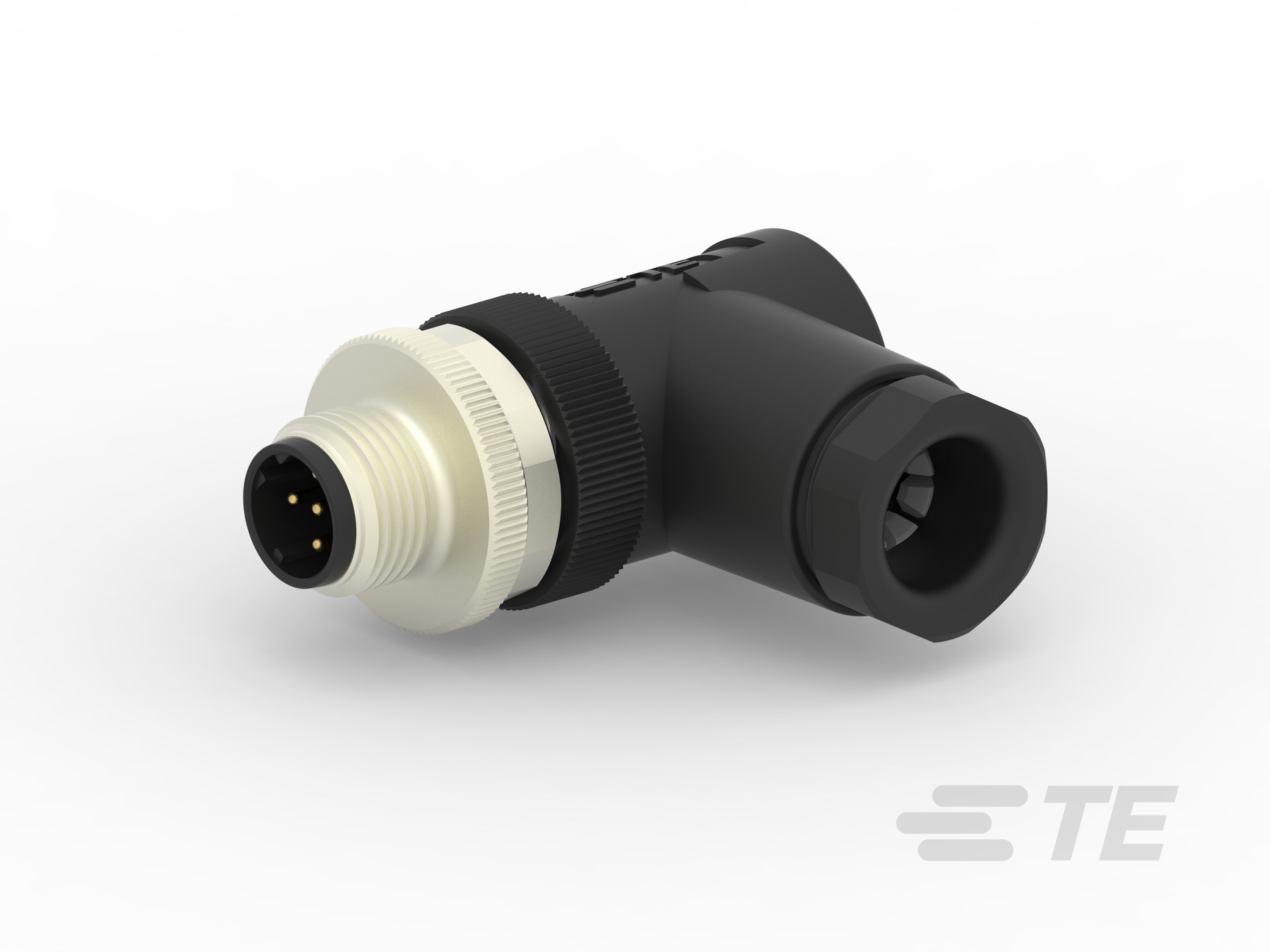

Specification	T4113502051-000

Applications	Industrial
Backshell Material, Plating	Polybutylene Terephthalate (PBT), Glass Filled
Cable Opening (Max)	0.315 in
Cable Opening (Min)	0.236 in
Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Contact Material	Zinc Alloy
Current Rating	4 A
Fastening Type	Threaded
Features	Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	PA, Nylon, Polyamide
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Positions	5
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	D
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-5
Shielding	Unshielded
Termination	Screw
Voltage Rating	60 V

M12 Value Line Series

Part	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Insert Material	Fastening Type	Color	Shell Material	Plating	Backshell Material	Contact Finish - Mating	Shielding	Shell Finish	Current Rating	Shell Size - Insert	Orientation	Contact Material	Number of Positions	Mounting Type	Applications	Connector Type	Contact Finish Thickness - Mating	Features	Primary Material	Ingress Protection Description	Ingress Protection IP Rating	Cable Opening (Min)	Cable Opening (Max)	Termination	Backshell Material, Plating
TE Connectivity AMP Connectors T4111011081-000	30 V	-40 °C	85 °C	Nylon PA Polyamide	Threaded	Silver	Brass	Nickel	Brass	Gold	Shielded	Nickel	2 A	M12-8	A	Zinc Alloy	8	Free Hanging (In-Line)	Industrial	Male Pins Receptacle	3 µin	Backshell	Metal	Dust Tight Waterproof	IP67	0.157 in	0.236 in	Screw
TE Connectivity AMP Connectors T4111002031-000	250 V	-40 °C	85 °C	Nylon PA Polyamide	Threaded	Black Silver	Brass			Gold	Unshielded	Nickel	4 A	M12-3	A	Zinc Alloy	3	Free Hanging (In-Line)	Industrial	Male Pins Receptacle	3 µin	Backshell	Metal	Dust Tight Waterproof	IP67	0.236 in	0.315 in	Screw	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors T4111001051-000	60 V	-40 °C	85 °C	Nylon PA Polyamide	Threaded	Black Silver	Brass			Gold	Unshielded	Nickel	4 A	M12-5	A	Zinc Alloy	5	Free Hanging (In-Line)	Industrial	Male Pins Receptacle	3 µin	Backshell	Metal	Dust Tight Waterproof	IP67	0.157 in	0.236 in	Screw	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors T4111002021-000	250 V	-40 °C	85 °C	Nylon PA Polyamide	Threaded	Black Silver	Brass			Gold	Unshielded	Nickel	4 A	M12-2	A	Zinc Alloy	2	Free Hanging (In-Line)	Industrial	Male Pins Receptacle	3 µin	Backshell	Metal	Dust Tight Waterproof	IP67	0.236 in	0.315 in	Screw	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors T4111001021-000	250 V	-40 °C	85 °C	Nylon PA Polyamide	Threaded	Black Silver	Brass			Gold	Unshielded	Nickel	4 A	M12-2	A	Zinc Alloy	2	Free Hanging (In-Line)	Industrial	Male Pins Receptacle	3 µin	Backshell	Metal	Dust Tight Waterproof	IP67	0.157 in	0.236 in	Screw	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors T4111012031-000	250 V	-40 °C	85 °C	Nylon PA Polyamide	Threaded	Silver	Brass	Nickel	Brass	Gold	Shielded	Nickel	4 A	M12-3	A	Zinc Alloy	3	Free Hanging (In-Line)	Industrial	Male Pins Receptacle	3 µin	Backshell	Metal	Dust Tight Waterproof	IP67	0.236 in	0.315 in	Screw
TE Connectivity AMP Connectors T4111002041-000	250 V	-40 °C	85 °C	Nylon PA Polyamide	Threaded	Black Silver	Brass			Gold	Unshielded	Nickel	4 A	M12-4	A	Zinc Alloy	4	Free Hanging (In-Line)	Industrial	Male Pins Receptacle	3 µin	Backshell	Metal	Dust Tight Waterproof	IP67	0.236 in	0.315 in	Screw	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors T4111002022-000	250 V	-40 °C	85 °C	Nylon PA Polyamide	Threaded	Black Silver	Brass			Silver	Unshielded	Nickel	4 A	M12-2	A	Brass	2	Free Hanging (In-Line)	Industrial	Male Pins Receptacle	80 µin	Backshell	Metal	Dust Tight Waterproof	IP67	0.236 in	0.315 in	Screw	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors T4111012021-000	250 V	-40 °C	85 °C	Nylon PA Polyamide	Threaded	Silver	Brass	Nickel	Brass	Gold	Shielded	Nickel	4 A	M12-2	A	Zinc Alloy	2	Free Hanging (In-Line)	Industrial	Male Pins Receptacle	3 µin	Backshell	Metal	Dust Tight Waterproof	IP67	0.236 in	0.315 in	Screw
TE Connectivity AMP Connectors T4111001042-000	250 V	-40 °C	85 °C	Nylon PA Polyamide	Threaded	Black Silver	Brass			Silver	Unshielded	Nickel	4 A	M12-4	A	Brass	4	Free Hanging (In-Line)	Industrial	Male Pins Receptacle	80 µin	Backshell	Metal	Dust Tight Waterproof	IP67	0.157 in	0.236 in	Screw	Glass Filled Polybutylene Terephthalate (PBT)
