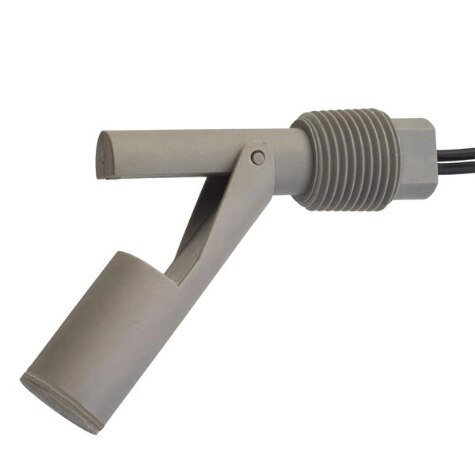

Specification	RSF86H100R

Current	1 A
Material - Housing & Prism	PPS, Polyphenylene Sulphide
Minimum Liquid Specific Gravity	0.85
Mounting Size	12.7 mm
Mounting Type	Male NPT
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-10 °C
Output Configuration	SPST-NC, NO
Output Type	Switch (Single Float)
Switch Actuation Level	0.945 "
Type	Liquid
Voltage Rating (AC)	300 VAC
Voltage Rating (DC)	300 VDC

RSF80 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Material - Housing & Prism	Type	Mounting Size	Mounting Type	Switch Actuation Level	Current	Output Type	Minimum Liquid Specific Gravity	Output Configuration	Voltage Rating (DC)	Voltage Rating (AC)
Sensata-Crydom RSF88H100R	100 °C	-20 °C	Polypropylene PP	Liquid	12.7 mm	Male NPT	0.787 "	1 A	Switch (Single Float)	0.85	NO SPST-NC	300 VDC	300 VAC
Sensata-Crydom RSF86Y100R	120 °C	-10 °C	Polyphenylene Sulphide PPS	Liquid	12.7 mm	Male NPT	0.945 "	600 mA	Switch (Single Float)	0.85	NO SPST-NC	120 VDC	240 VAC
Sensata-Crydom RSF86H050T	120 °C	-10 °C	Polyphenylene Sulphide PPS	Liquid	12.7 mm	Male NPT	0.945 "	1 A	Switch (Single Float)	0.85	NO SPST-NC	300 VDC	300 VAC
Sensata-Crydom RSF88Y100R	100 °C	-20 °C	Polypropylene PP	Liquid	12.7 mm	Male NPT	0.787 "	600 mA	Switch (Single Float)	0.85	NO SPST-NC	120 VDC	240 VAC
Sensata-Crydom RSF84H100R	100 °C	-20 °C	Polypropylene PP	Liquid	12.7 mm	Male NPT	0.787 "	1 A	Switch (Single Float)	0.85	NO SPST-NC	300 VDC	300 VAC
Sensata-Crydom RSF87H100G	105 °C	-10 °C	Polyvinylidene Fluoride PVDF	Liquid	12.7 mm	Male NPT		1 A	Switch (Single Float)	0.85	NO SPST-NC	300 VDC	300 VAC
Sensata-Crydom RSF86YP	120 °C	-10 °C	Polyphenylene Sulphide PPS	Liquid	12.7 mm	Male NPT	0.945 "	600 mA	Switch (Single Float)	0.85	NO SPST-NC	120 VDC	240 VAC
Sensata-Crydom RSF83YP	75 °C	-20 °C	Nylon	Liquid	12.7 mm	Male NPT	0.787 "	600 mA	Switch (Single Float)	0.85	NO SPST-NC	120 VDC	240 VAC
Sensata-Crydom RSF84HP	100 °C	-20 °C	Polypropylene PP	Liquid	12.7 mm	Male NPT	0.787 "	1 A	Switch (Single Float)	0.85	NO SPST-NC	300 VDC	300 VAC
Sensata-Crydom RSF87HP	105 °C	-10 °C	Polyvinylidene Fluoride PVDF	Liquid	12.7 mm	Male NPT		1 A	Switch (Single Float)	0.85	NO SPST-NC	300 VDC	300 VAC
