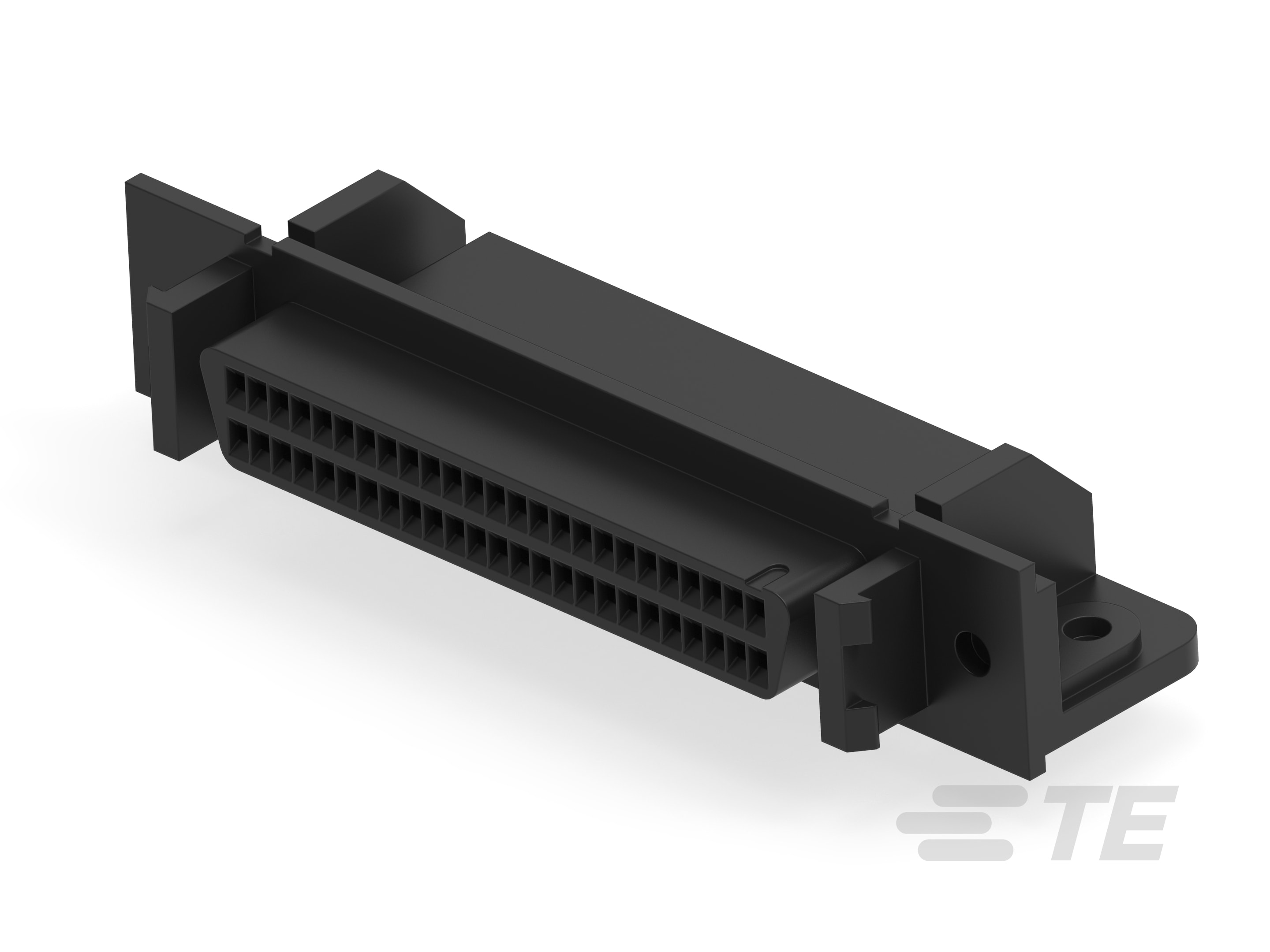

Specification	2-5174726-4

Color	Black
Connector Layout Pitch	0.05
Connector Layout Row to Row	0.1
Connector Style	D-Type
Connector Type	Female Sockets, Plug
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating	1 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Shielded
Finish	Nickel Plated
Flange Feature	Housing, Latchblocks, Shell (M2.5)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	50
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Zinc
Termination	Solder
Voltage Rating	100 VAC

AMPLIMITE 0.50 Series Series

D-Sub Standard Connectors 50 50SR VERT RCPT

...
