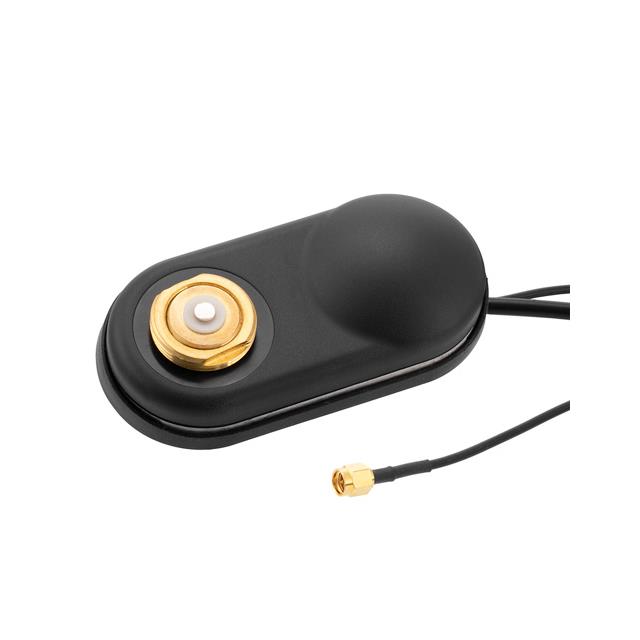

HG-GPSNMO195-SMA
ObsoletePasternack
ANT COMBO NMO MOUNT 30 DB GPS VE
HG-GPSNMO195-SMA
ObsoletePasternack
ANT COMBO NMO MOUNT 30 DB GPS VE
Description
General part information
HG-GPSNMO195-SMA
1.575GHz General Purpose Module RF Antenna 1.572GHz ~ 1.578GHz 30dBi NMO, SMA Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG-GPSNMO195-SMA |
|---|---|
| Antenna Type | Module |
| Applications | General Purpose |
| Features | Cable, 5.182m, Filter |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.578 GHz |
| Frequency Range (Min) | 1.572 GHz |
| Gain | 30 dBi |
| Height (Max) | 0.88 in |
| Ingress Protection | IP66 |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max | 10 VA |
| RF Family/Standard | General ISM |
| Termination | NMO, SMA |
| VSWR | 2 |
