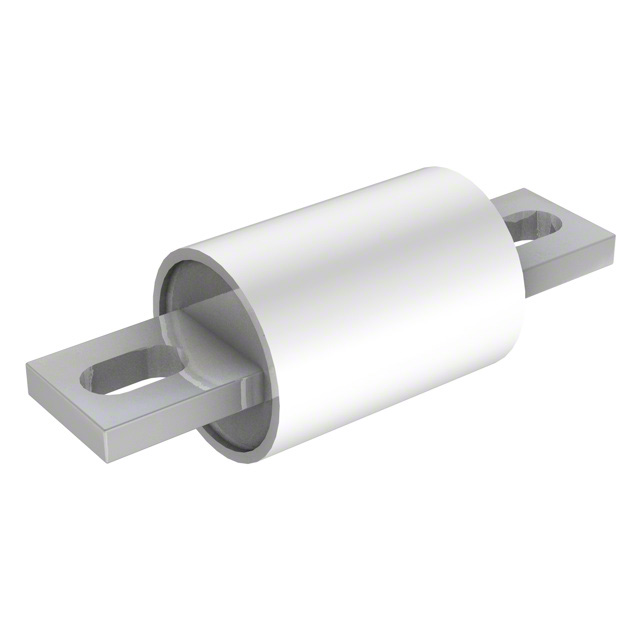

FWH-225A
225A 500 VAC 500 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FWH-225A |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UR, CSA, CE |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 50 kA |
| Current Rating | 225 A |
| Fuse Type | Cartridge |
| Melting I²t | 4600 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 1.5 in |
| Size / Dimension Length | 4.34 in |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 500 V |
