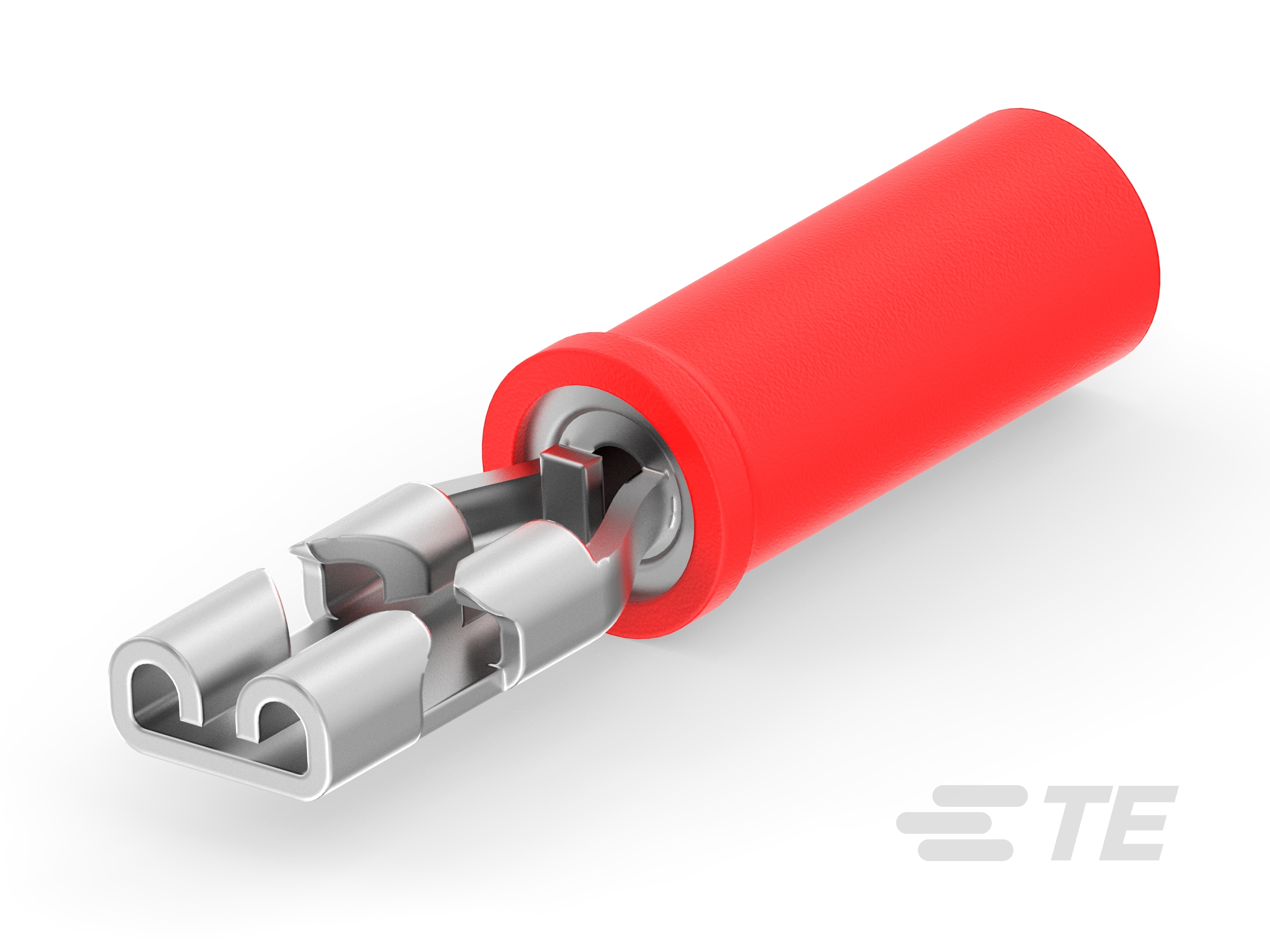

RECEPT,PIDG FASTON 16-14 110-640927-1

640927-1

Active
TE Connectivity AMP Connectors

RECEPT,PIDG FASTON 16-14 110

Find alt
RECEPT,PIDG FASTON 16-14 110-640927-1

640927-1

Active
TE Connectivity AMP Connectors

RECEPT,PIDG FASTON 16-14 110

Find alt

Description

General part information

FASTON 110 Series

Quick Disconnect Receptacle, 16 – 14 AWG, 1.04 – 2.62 mm² Wire, 2050 – 5180 CMA, 2.79 mm [.11 in] Tab Width, Straight, Brass, FASTON 110

Technical Specifications

Parameters and characteristics for this part

Specification640927-1
ColorBlue
Contact FinishTin
Contact MaterialBrass
GenderFemale
InsulationNon-Mating End Insulated
Length - Overall0.8 in
Mounting TypeFree Hanging (In-Line)
Tab Length0.25 in
Tab Thickness0.016 in
Tab Width0.11 in
Terminal TypeStandard
TerminationCrimp
Wire Gauge (AWG) (Max)16 AWG
Wire Gauge (AWG) (Min)14 AWG
