2-34156-1
ActiveTE Connectivity AMP Connectors

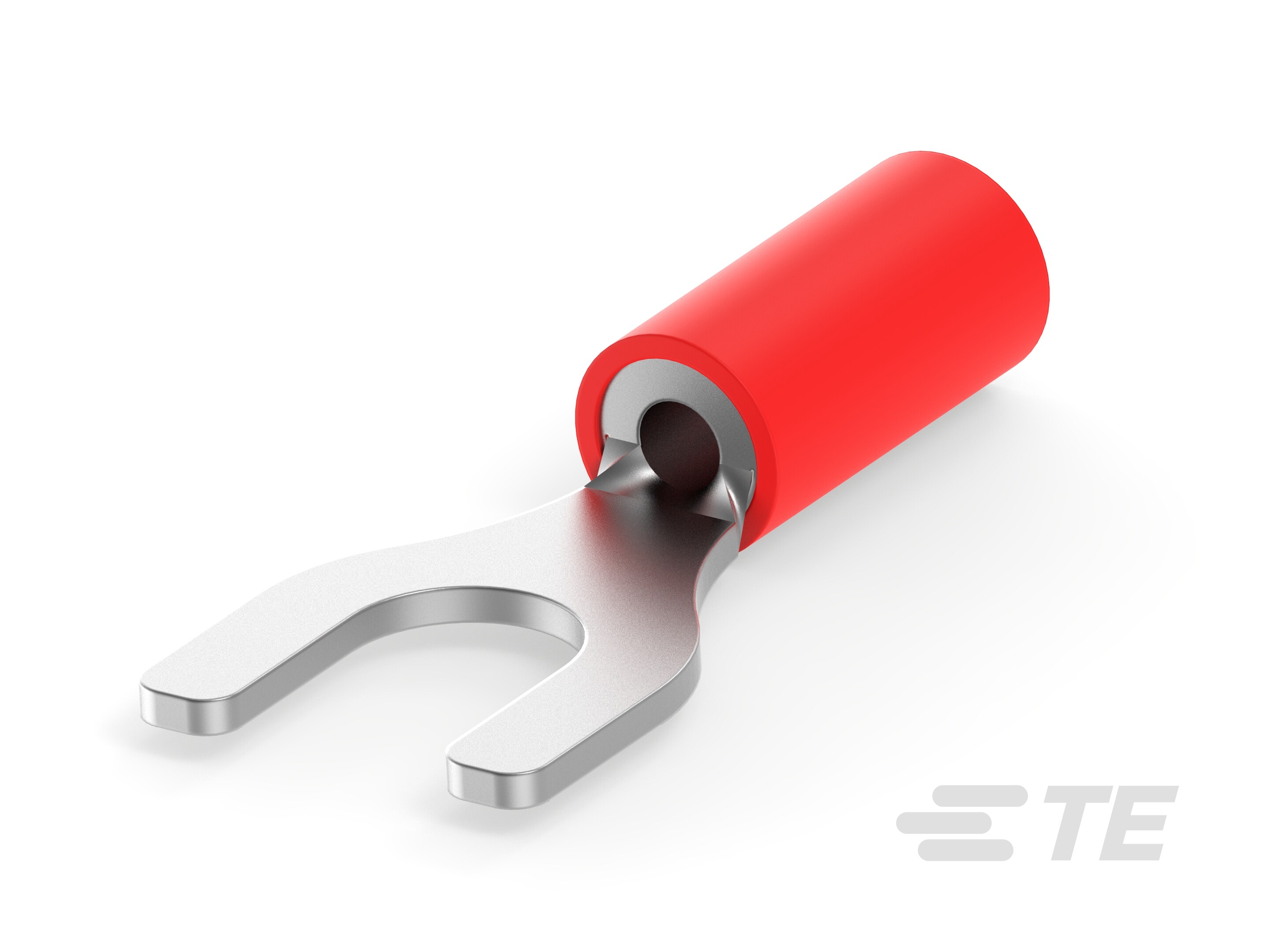

SPADE TONGUE TERMINAL 16-22AWG COPPER RED 23.37MM TIN T/R
2-34156-1
ActiveTE Connectivity AMP Connectors
SPADE TONGUE TERMINAL 16-22AWG COPPER RED 23.37MM TIN T/R
Description
General part information
2-34156-1
Spade Tongue Terminal, 22 – 16 AWG, #10 Stud, 5 mm [.197 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PLASTI-GRIP
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-34156-1 |
|---|---|
| Color | Red |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Length - Overall | 0.92 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Standard |
| Termination | Crimp |
| Width - Outer Edges | 0.375 in |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
