Description
General part information

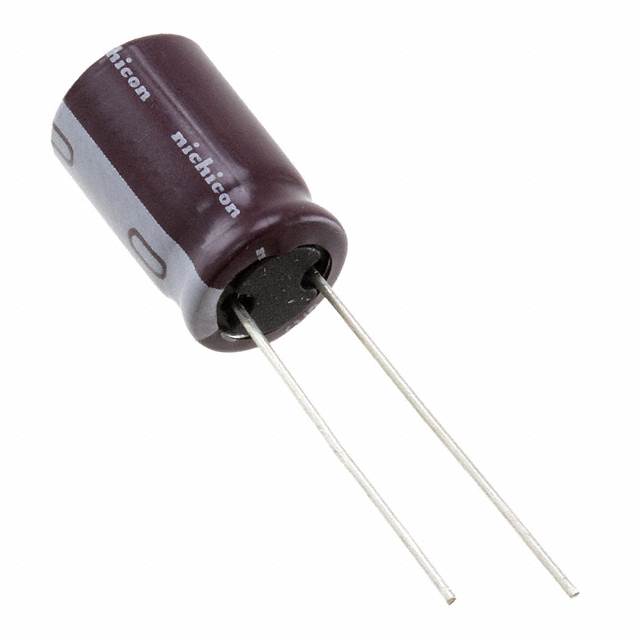

UPS2V3R3MPD1TD
3.3 µF 350 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UPS2V3R3MPD1TD |
|---|---|
| Applications | General Purpose |
| Capacitance | 3.3 µF |
| Height - Seated (Max) | 0.689 in |
| Lead Spacing | 0.197 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 38 mA, 60.8 mA |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 350 V |
