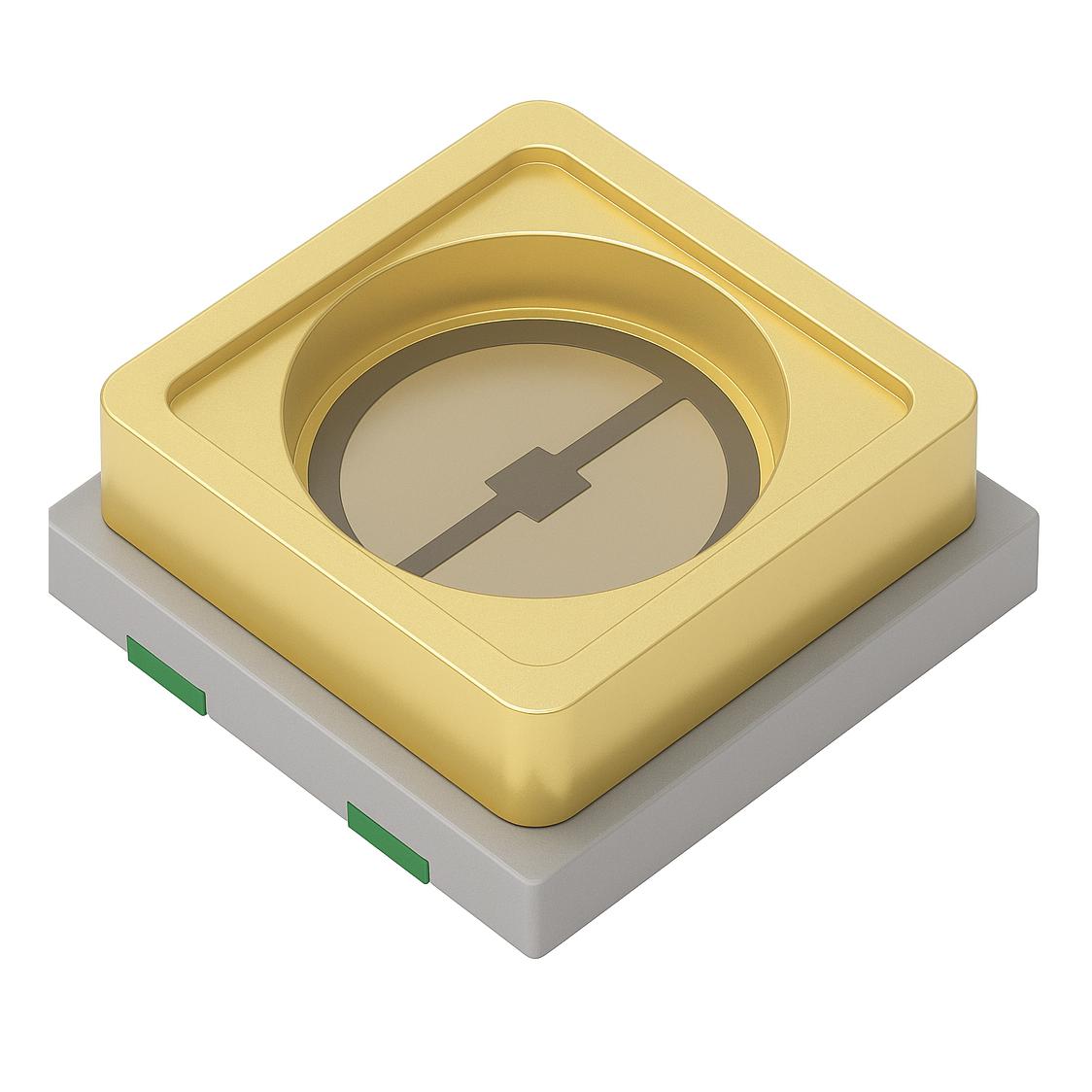

15335327CA554
ActiveWürth Elektronik
UV EMITTER, 275NM, UV-C, 3.45X3.45MM ROHS COMPLIANT: YES
15335327CA554
ActiveWürth Elektronik
UV EMITTER, 275NM, UV-C, 3.45X3.45MM ROHS COMPLIANT: YES
Description
General part information
15335327CA554
UV EMITTER, 275NM, UV-C, 3.45X3.45MM ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | 15335327CA554 |
|---|---|
| Current - DC Forward (If) (Max) | 500 mA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Package / Case | No Lead, 3-SMD |
| Type | Ultraviolet (UV) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 6 V |
| Wavelength | 275 nm |
