2314-5121TB

Active

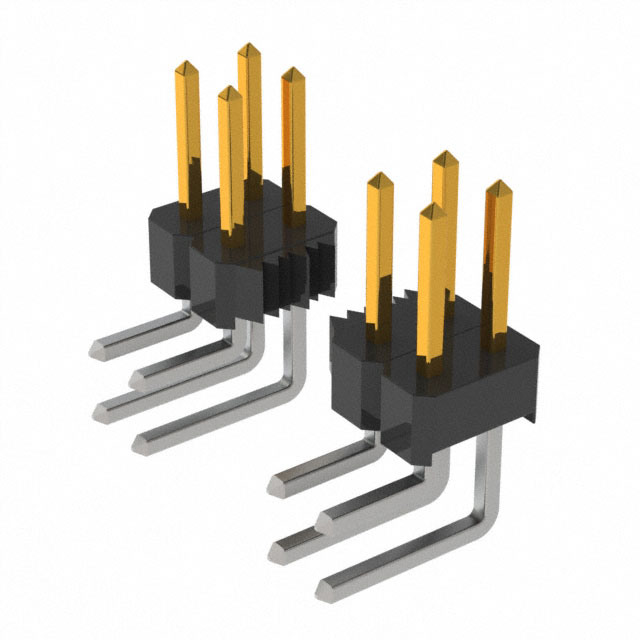

CONN HEADER R/A 14POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

2314-5121TB

Active

CONN HEADER R/A 14POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2314-5121TB	2314 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	30 Áin	10 - 30 çin
Contact Finish Thickness - Mating	0.76 Ám	0.25 - 0.76 çm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	5.84 mm	5.84 mm
Contact Length - Mating	-	8.08 mm
Contact Length - Mating [x]	0.23 in	0.23 - 0.318 in
Contact Length - Post	2.79 mm	2.79 mm
Contact Length - Post	-	3.05 mm
Contact Length - Post [x]	0.11 in	0.11 - 0.12 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	6.14 mm	2.54 - 6.14 mm
Insulation Height	-	0.1 in
Insulation Height [custom]	0.242 in	0.242 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle
Number of Positions	14	14
Number of Positions Loaded	All	All
Number of Rows	2	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	0.45 "
Overall Contact Length	-	11.43 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

2314 Series

CONN HEADER VERT 14POS 2.54MM

Part	Insulation Color	Contact Length - Mating [x]	Contact Length - Mating	Number of Rows	Style	Contact Finish - Mating	Contact Material	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Insulation Height	Insulation Height	Mounting Type	Contact Finish - Post	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Type	Number of Positions	Connector Type	Shrouding	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Length - Post	Insulation Height [custom]
3M 2314-6111-TG	Black	0.23 in	5.84 mm	1	Board to Board, Cable	Gold	Copper Alloy	0.45 "	11.43 mm	UL94 V-0	0.1 in	2.54 mm	Through Hole	Tin-Lead	Square	10 çin	0.25 çm	Push-Pull	Male Pin	14	Header	Unshrouded	All	105 ░C	-55 °C	Solder	0.12 in	3.05 mm	2.54 µm	100 µin	3 A	0.1 in	2.54 mm
3M 2314-6121-TG	Black	0.23 in	5.84 mm	2	Board to Board, Cable	Gold	Copper Alloy	0.45 "	11.43 mm	UL94 V-0	0.1 in	2.54 mm	Through Hole	Tin-Lead	Square	10 çin	0.25 çm	Push-Pull	Male Pin	14	Header	Unshrouded	All	105 ░C	-55 °C	Solder	0.12 in	3.05 mm	2.54 µm	100 µin	3 A	0.1 in	2.54 mm	2.54 mm	0.1 in
3M 2314-5221-TG	Black	0.318 "		2	Board to Board, Cable	Gold	Copper Alloy			UL94 V-0		6.14 mm	Through Hole, Right Angle	Tin-Lead	Square	10 çin	0.25 çm	Push-Pull	Male Pin	14	Header	Unshrouded	All	105 ░C	-55 °C	Solder	0.11 in		2.54 µm	100 µin	3 A	0.1 in	2.54 mm	2.54 mm	0.1 in	8.08 mm	2.79 mm	0.242 in
3M 2314-5121TB	Black	0.23 in	5.84 mm	2	Board to Board, Cable	Gold	Copper Alloy			UL94 V-0		6.14 mm	Through Hole, Right Angle	Tin-Lead	Square	30 Áin	0.76 Ám	Push-Pull	Male Pin	14	Header	Unshrouded	All	105 ░C	-55 °C	Solder	0.11 in		2.54 µm	100 µin	3 A	0.1 in	2.54 mm	2.54 mm	0.1 in		2.79 mm	0.242 in
