3073830
ObsoletePhoenix Contact
CONN TERM BLK GROUND 4-10 AWG
3073830
ObsoletePhoenix Contact
CONN TERM BLK GROUND 4-10 AWG
Description
General part information
3073830

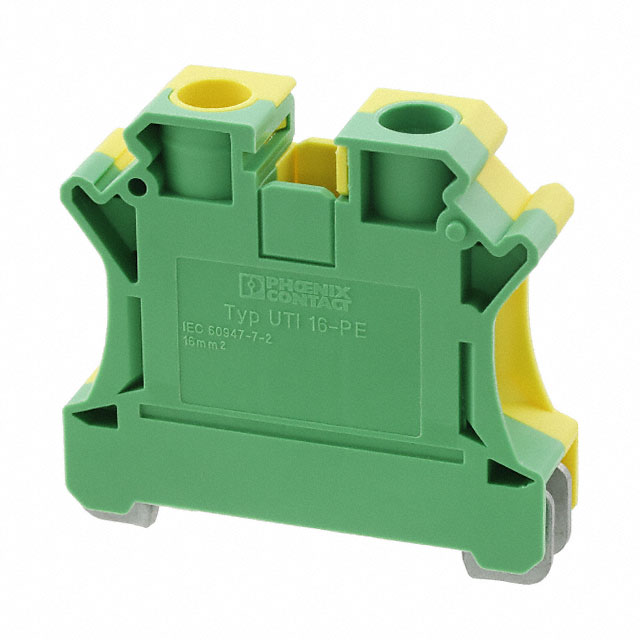

Terminal Block Connector 2 Position Ground, Earth Green, Yellow 4-10 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 3073830 |
|---|---|
| Color | Yellow, Green |
| Current - IEC | 76 A |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-2 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 12 mm |
| Terminal Width | 12.2 mm |
| Termination Style | Screw |
| Type | Earth, Ground |
| Wire Gauge or Range - AWG (Max) | 10 AWG |
| Wire Gauge or Range - AWG (Min) | 4 AWG |
| Wire Gauge or Range - mm² (Maximum) | 25 mm² |
| Wire Gauge or Range - mm² (Minimum) | 6 mm² |
